SPECIFICATIONS
Brand Name: xinpuguang
Certification: CE,RoHS,weee
Flexible Solar Panel: No
Foldable Solar Panel: No
Glass Solar Panel Size: 1140*560*25MM
Glass Solar Panel Weight: 6.5 Kg
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 150W
Model Number: Solar Panel Charger
Module Efficien: 21.8%
Nominal Capacity: 19.8V 7.5A
Number of Panels: 1
Origin: Mainland China
PET Solar Panel Size: 1160*565*25mm
PET Solar Panel Weight: 3.88 Kg
Rigid Solar Panel: No
Size: 1160*565*25mm /,1140*560*25MM
Type: Solar Panel
is_customized: Yes

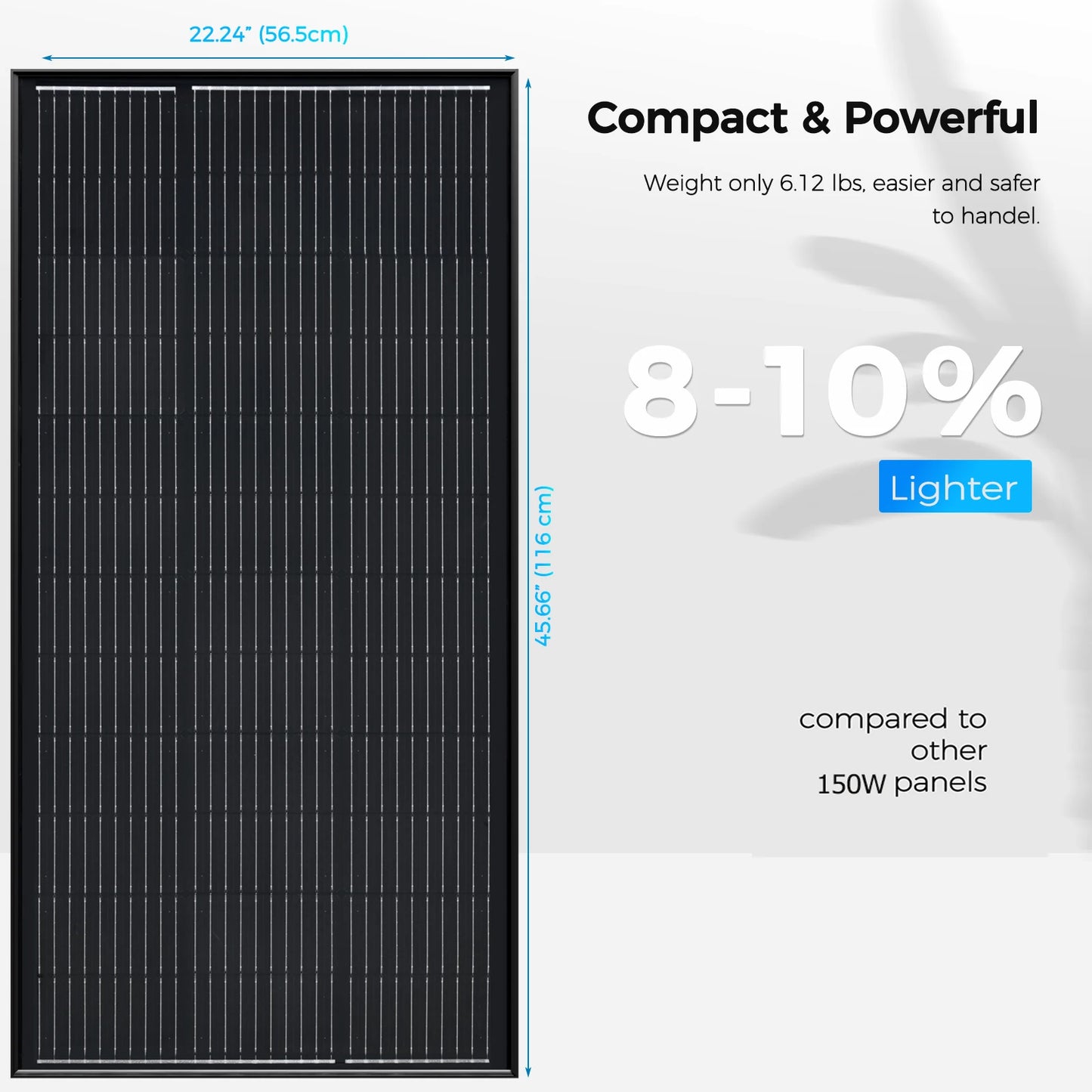

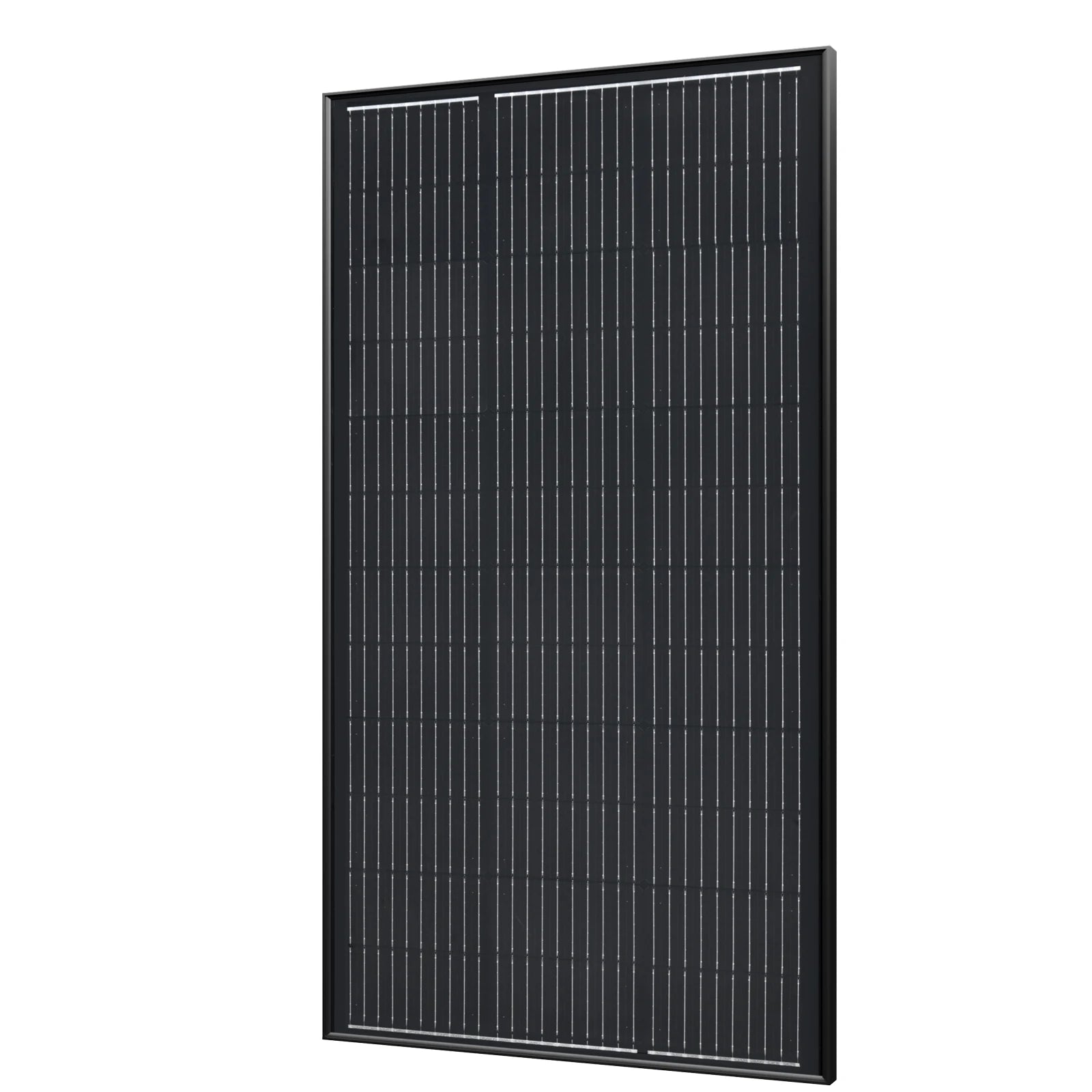

XINPUGUANG Solar Panel 150W 19.8V Photovoltaic Power Cell 12v battery charger for camper RV boat home balcony travel camping
Our monocrystalline solar panel redefines compatibility, effortlessly powering a wide range of devices to make your life easier, from homes to RVs to yachts. Compatible with various battery types: AGM, GEL, FLD, and LI, it ensures that wherever you are, your power needs are covered.
PET 19,8V 150W SOLAR PANEL Specification:
Maximum power (Pmax) 150W
Maximum system voltage 1000V DC
Open circuit voltage (cov) 23,76 V
Short circuit current (Isc) 7,9 A
Vmp 19.8V
Maximum power current(Imp) 7,57 A
Temperature range -40℃～+80℃
Cell Monocrystalline silicon cell
Number of cells 36 pieces
Cell efficiency 24%.
Weight 3.88kg

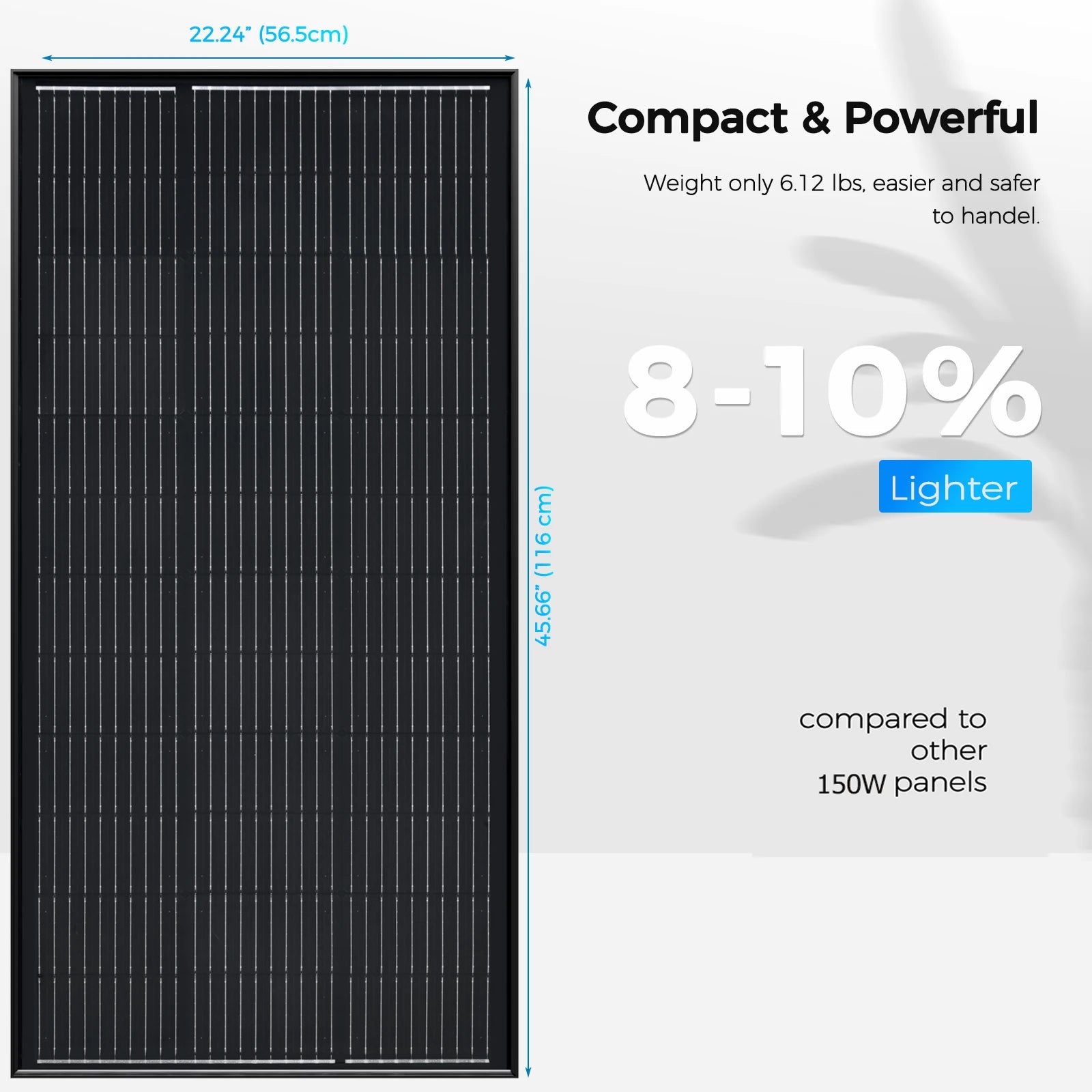

Size 1160*565*25mm
Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
Output port 0.9 m long MC 4 connector wire
Package List:
150W solar panel *1

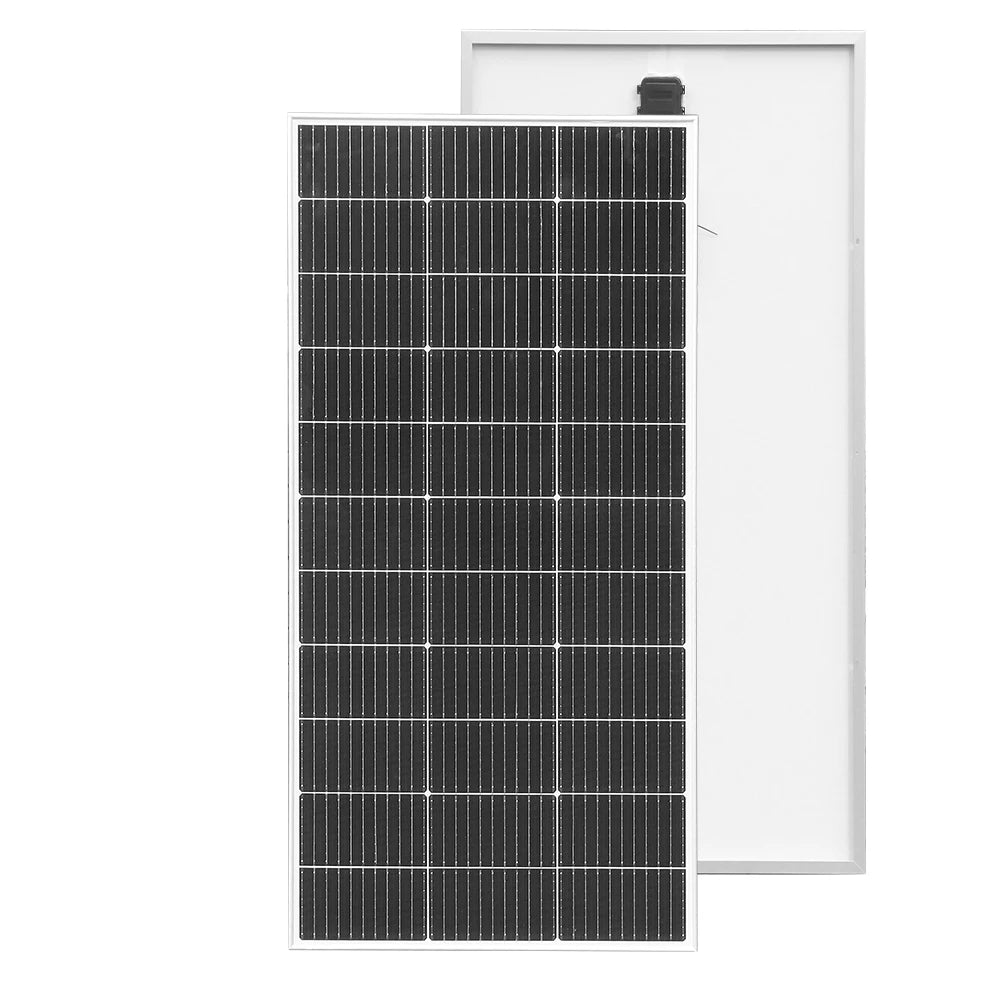

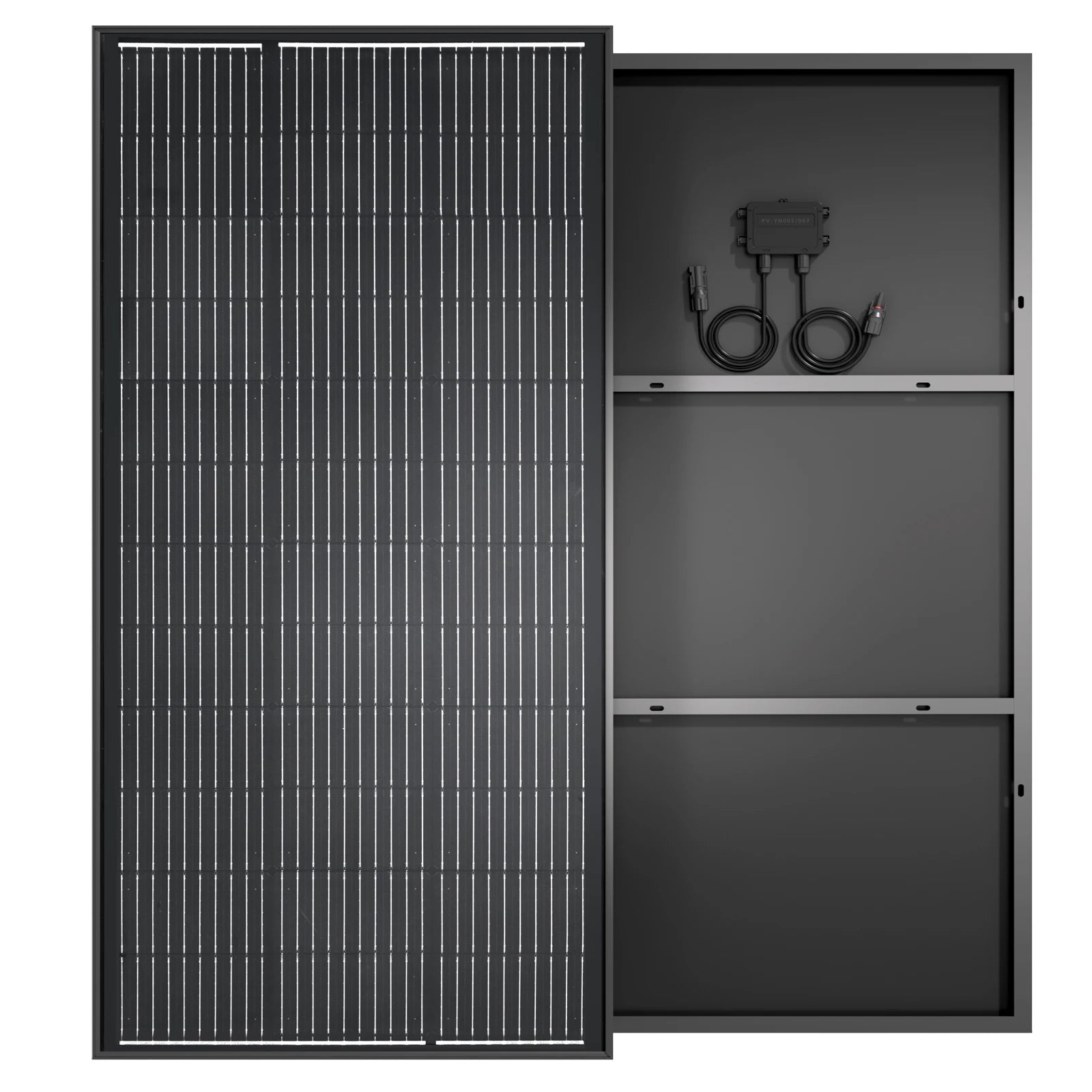

Three different specifications of 150W solar panels: All panels share the same dimensions.One model features white glass solar panels.The other two models are PET solar panels, available in white and black.
PET solar panels are lighter in weight than glass solar panels.

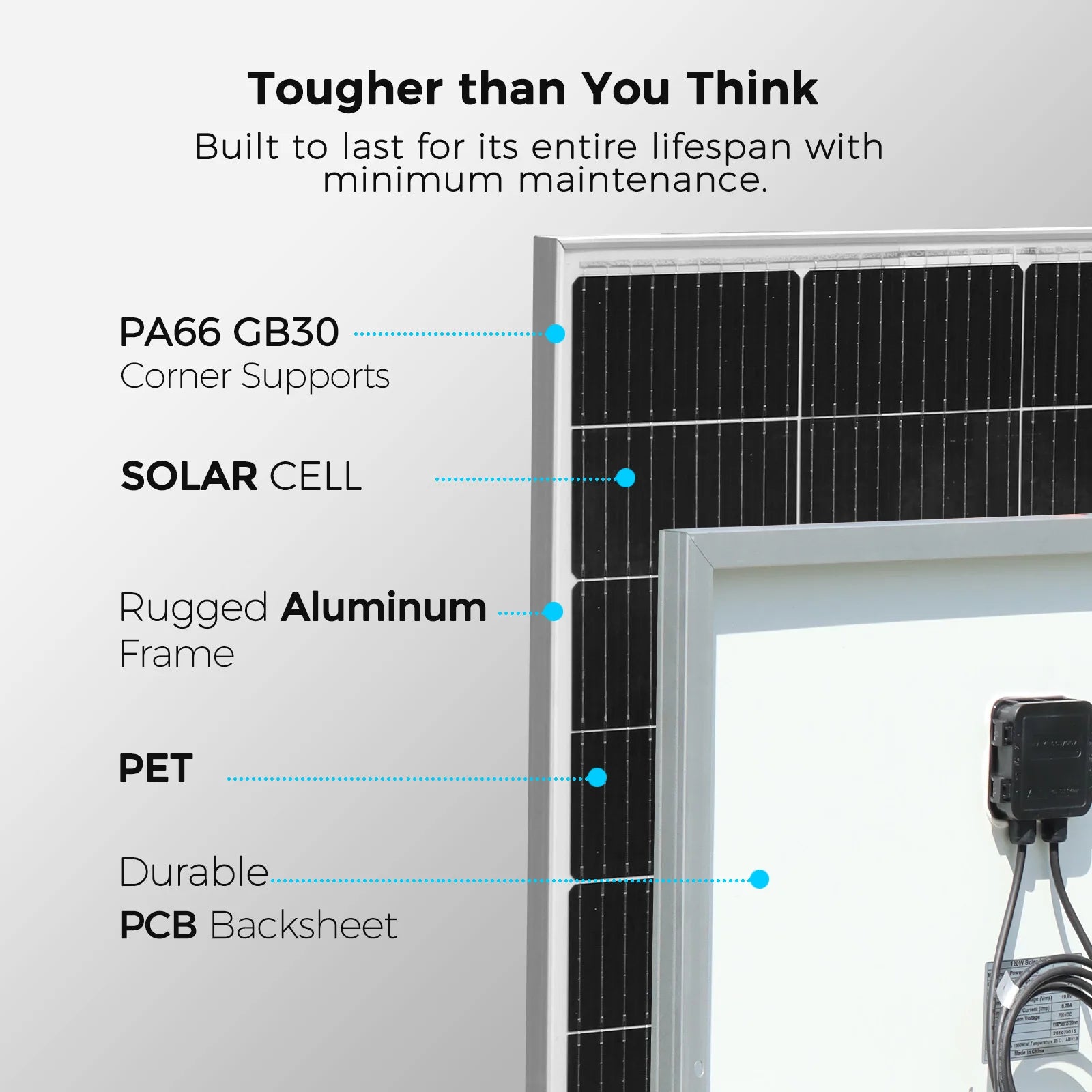

[Durable Solar Panel] Our 19.8V 150 watt solar panels feature a corrosion-resistant aluminum frame. It can also withstand strong winds of 2400Pa and Snowload of 5400Pa. Both the IP65 junction box and IP67 M C 4 connectors have excellent waterproof functions. Allows you to use it outdoors with confidence.
[Easy to Installation] Each 19.8 Volt solar panel has specially designed pre-drilled holes for easy installation. It can fully meet the installation needs of various applications. It is compatible with XINPUGUANG's ABS corner mounts, Z mounts, and adjustable tilt mounts.
[Versatile Applications] Perfect for a variety of uses, including residential, commercial, and mobile setups, this solar panel can power everything from small devices to larger systems, enhancing your energy independence.
Solar Panel Plug & Play Setup Pre-drilled holes & included cables for quick installation,No wiring expertise needed (compatible with most 12V controllers).
solar panel Waterproof IP67 rating (-40℃~85℃ operation) ,Anti-corrosion aluminum frame
Diodes are pre-installed in junction box

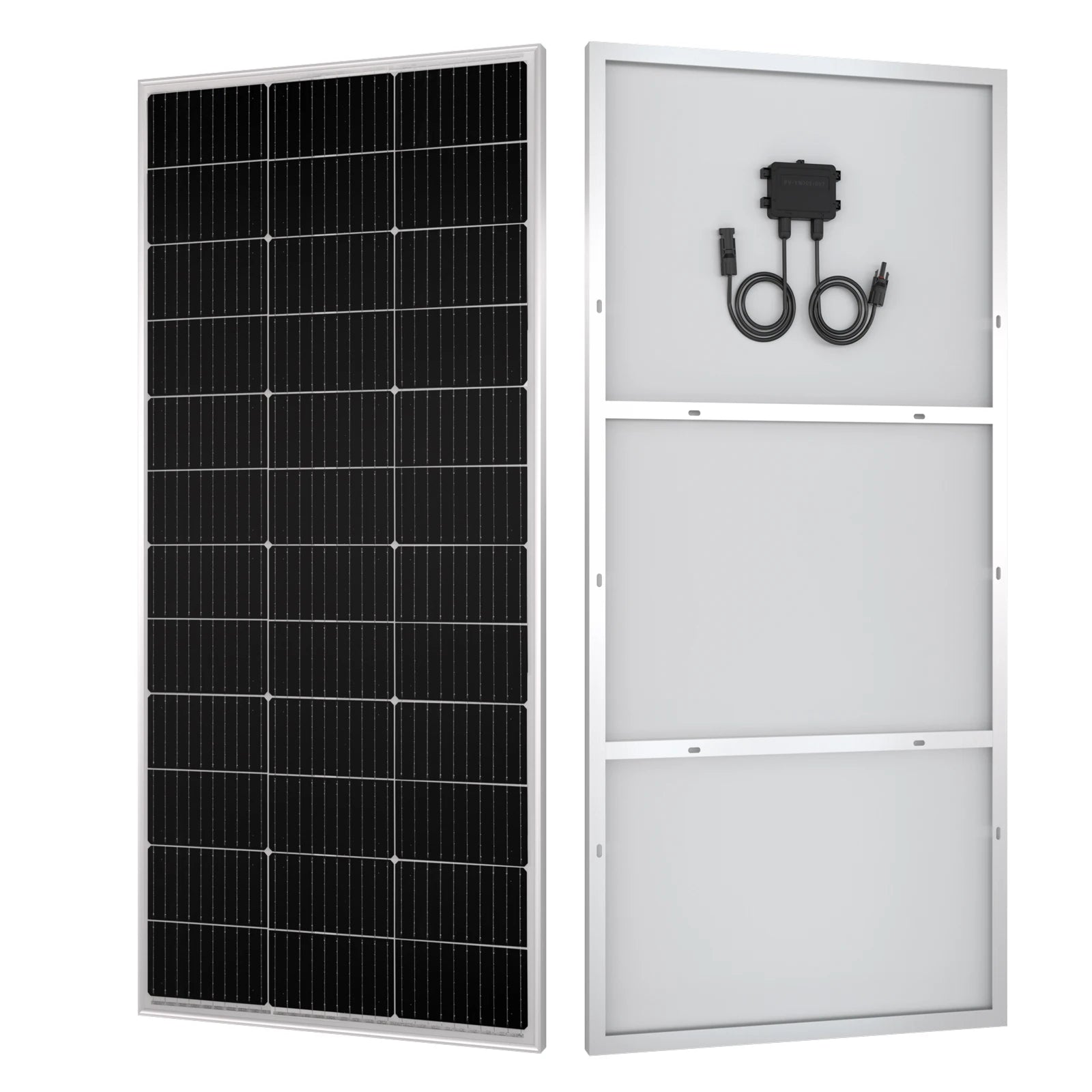

The back has 4 drill hole that can be quickly installed.
Glass 19.8V 150W SOLAR PANEL Specification
Maximum power (Pmax) 150W
Maximum system voltage 1000V DC
Open circuit voltage (cov) 23,76 V
Short circuit current (Isc) 7,9 A
Vmp 19.8V
Maximum power current(Imp) 7,57 A
Temperature range -40℃～+80℃
Cell Monocrystalline silicon cell
Number of cells 36 pieces
Cell efficiency 24%.
Weight 6.5kg
Size 1140*560*25mm
Standard test conditions lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
Surface material Toughened glass
Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
Glass Solar Panel
The surface is tempered glass, Thickened aluminum alloy frame.waterproof, snowproof, resistant to small hail.
Basic components for grid connected and off grid solar panel systems, RVs, Ry boats, and Green house solar panels.
Diodes are pre-installed in junction box and a pair of 24-inches cables with M C -4 connectors comes with the panel automatically
The back has 4 drill hole that can be quickly installed.
Product features:
Upgraded glass solar panel advantages
1.Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.
2.The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.
3. This product has excellent low light performance;
4.The monocrystalline silicon solar cells used have high conversion rates; Adopting an aluminum alloy frame, with high strength and strong resistance to mechanical impact;
5.With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment
6.The pre drive holes on the back of the panel allow for quick installation and fixation. Including pre drilled holes for grounding. Compatible with different installation systems, such as Z-bracket, pole mount, and tilt mount.
7. Power tolerance range (ensuring that the output power is within a positive and negative tolerance range of -3% to+3%);
8. Capable of withstanding strong winds and snow loads. Capable of withstanding wind loads (2400 Pascals) and snow loads (5400 Pascals).
PS

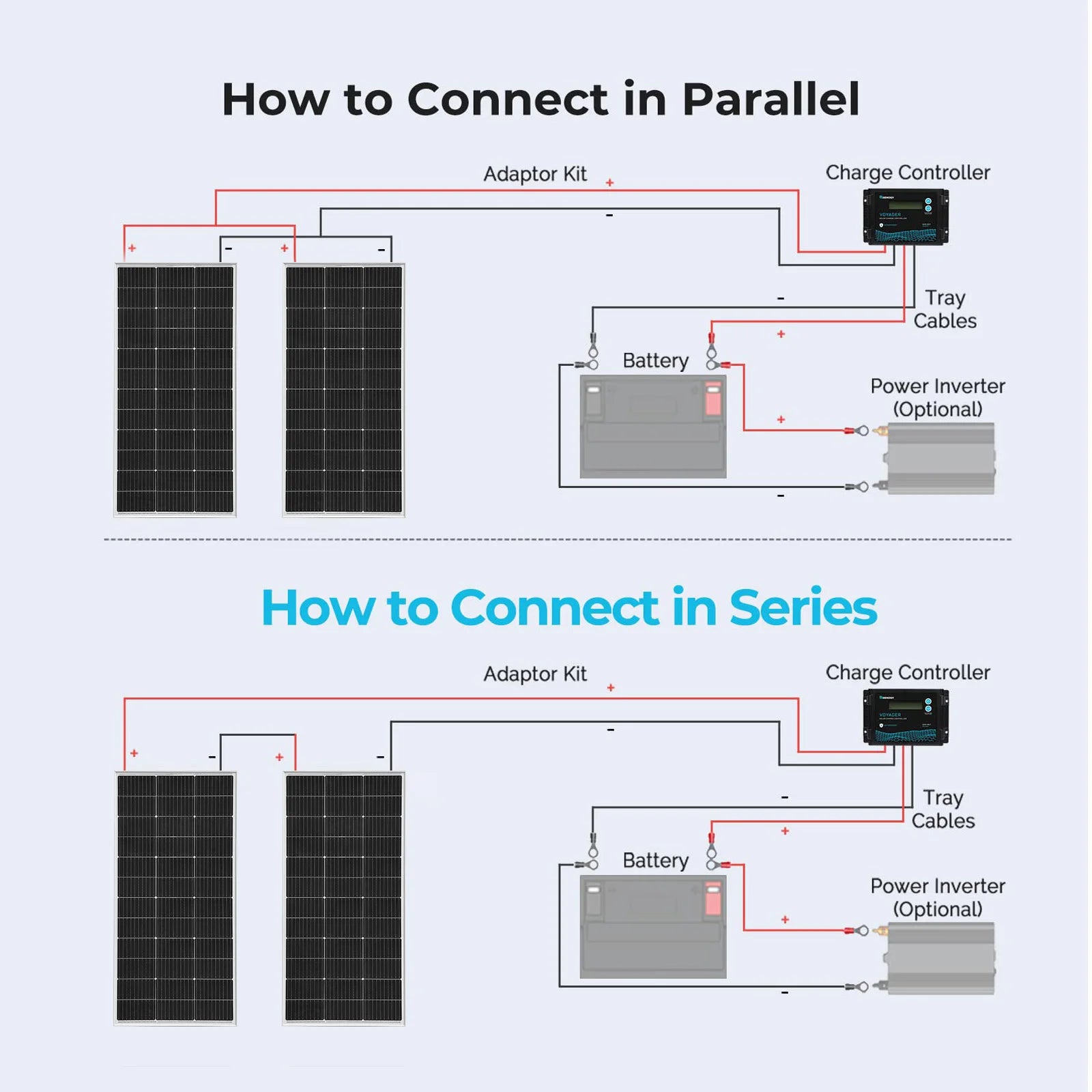

The solar panel charges regular 12V lead-acid, lithium-ion and lithium iron phosphate batteries. The solar panel needs to be configured with a controller to connect to the battery.
Solar panels charge portable 12V batteries. Solar panels can be connected directly to the battery.
