SPECIFICATIONS
Brand Name: NONE
Certification: CE
Design: Brushless
Drop-outs/Rear Fork Width for installation: 150mm
High-concerned chemical: None
Magnet Height: 40mm, 16 pole pairs
Max Efficiency: 86-91%
Max Torque: approx 250N.m
Origin: Mainland China
Stator: Aluminmum Core
Suggest rated controller Current: 150A
Voltage: 72V
Wattage: > 400w
axle size: 12*16mm
brand: QS
dropout width: 150mm
max speed 3.5T: 100-110kph
max speed 5T: 70-80kph
motor: 8000W 273 40H V3
E-Bike electric bicycle Hub Motor QS Motor 273 8000W （dropout 150mm） peak 72V 8000W V3 100KPH For Electric Bicycle Motor Kits
Difference between 3.5T and 5T : 3.5T is high speed version, 5T is high torque version, 5T max speed is much lower than 3.5T. If you often ride on mountain road or your ebike will load heavy weight, then 5T is better for you.
Generally SPEC
8000W 273 40H V3 E-spoke hub motor
8000W 273 40H V3 E-spoke hub motor
Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
Matching Rim size: 17inch, 18inch, 19inch, 21inch moped wheel.
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminmum Core
Rated Power: 4000W
Rated Voltage: 72V as default
Max Speed: 120KPH
kV: 11.46/12.46/13.54/15.69/17.71etc.
Max Torque: approx 250N.m
Max Efficiency: 86-91%
Continuous Battery Current:69A (72V)
Peak Battery Current: 138A (72V)
Suggest Peak Phase Current: 448-561A (depend on the kV)
Thermic Probe: KTY83/122 (as default, optional)
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Bike Disc brake, PCD6*44mm(as default)
Drop-outs/Rear Fork Width for installation: 150mm
Dual Hall Set with waterproof connectors
16mm ² ; Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black
N.W./G.W.: 18.2kg/20.0kg
Package Dimension: 43cm*43cm*41cm/piece

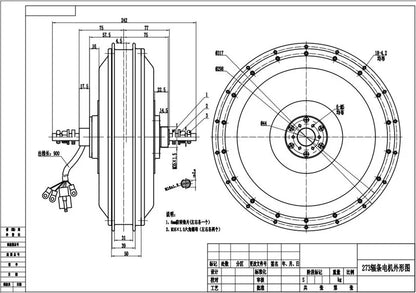

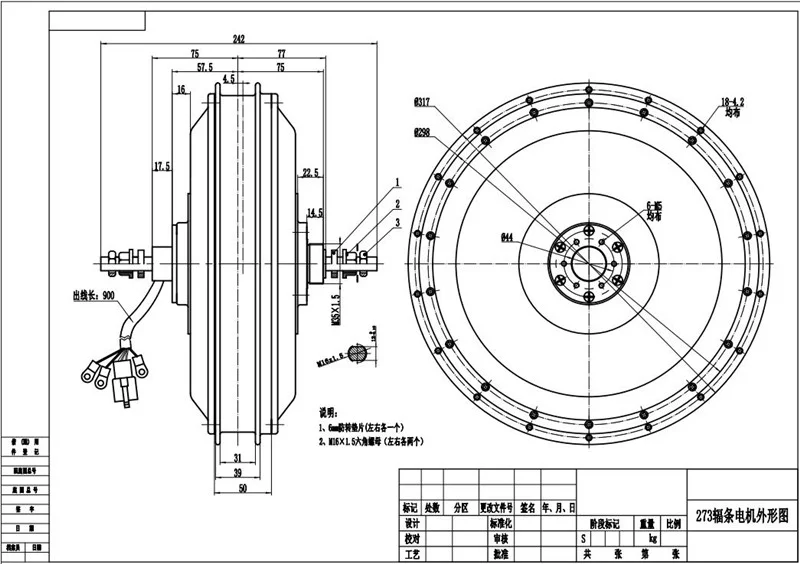

Drawing
Packing
Foam plastics and cartons
| Color |
5T 150mm, 3.5T 150mm |
|---|---|
| Ships From |
China Mainland, United States |
