SPECIFICATIONS
Brand Name: NONE
Certification: CE
Controller: 72V 80A sine wave dual mode
Design: Brushless
Display: UKC1 Color display
Drop out: 170-175MM/190MM
High-concerned chemical: None
Loading: 150KG
Max speed: appro 90-100km/h
Motor: Brushless Non-gear Hub Motor
Origin: Mainland China
PAS: 8 Magnets
Power: 3000w
Throttle: Full twist throttle
Volt: 48-72v
Voltage: 72v
Wattage: > 400w
brake type: disc brake
freewheel: single speed or seven speed
rated voltage: 72v
rim width: 80mm by default
modname=ckeditor170-175mm/190mm dropout 90-100km/h 72v 3000W Rear wheel Motor Electric Fat Bike Kit Electric Fat Bicycle Conversion Kit

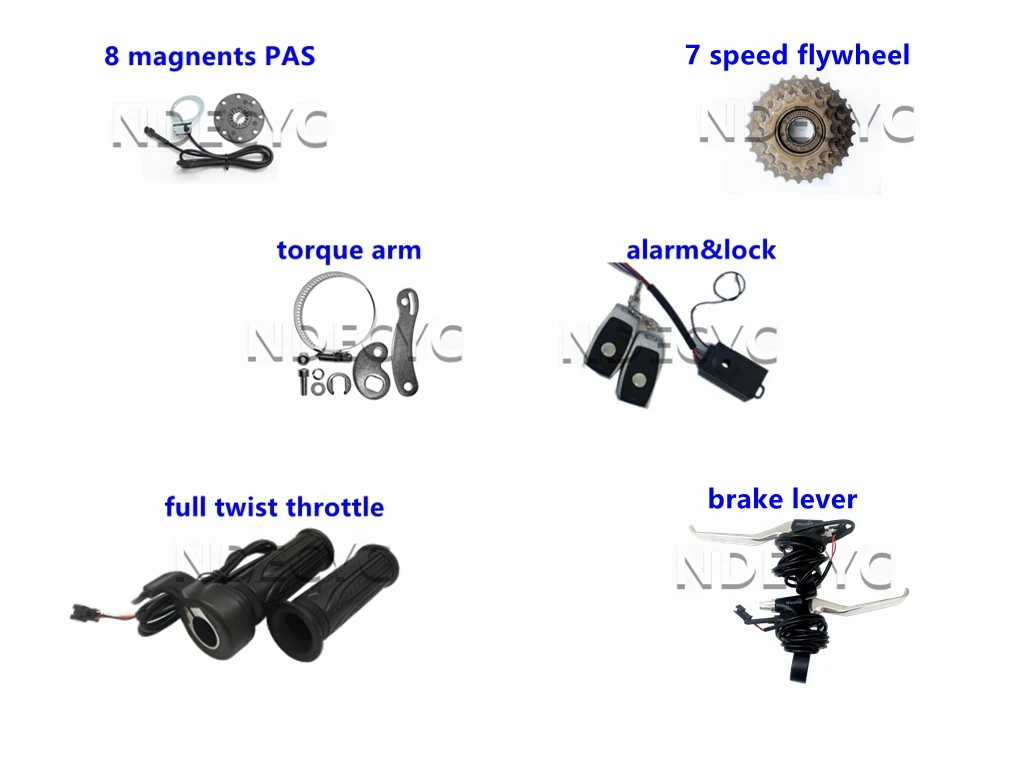

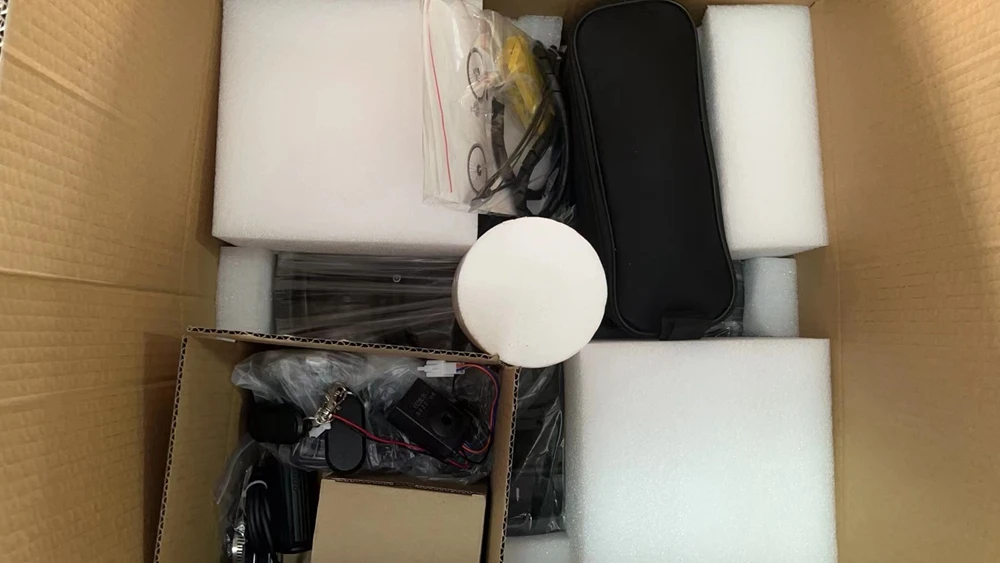

Packaging list :
1. NBP 48-72v 3000w Electric bike rear hub motor 170/190 dropout
2. 20x4.0/24x4.0/26x4.0 black rim 80mm width by default, we also have 100mm if you need
3. Two alloy brake levers (can change to brake sensor)
9. Controller bag
10. M16 Torque arm
11. Alarm&Lock
Product Details
1.72V 3000W Motor and Fat Bike Blue Rim
·High quality, competitive price
·Easy to install
·Low noise
·High torque, Safe collocation
Dropout width: 170-175mm and 190mm for you to choose
Motor Details:
2.Motor design: Double axle out
3.Spoke hole: 3.4mm x 36pcs
4.Matching Rim:16inch-29inch
5.Magnet Height: 50MM
6.No. of Pole Pairs: 23paris
7.Rated Power:3000W
8.Peak Power: 6000W
9.Rated Voltage: 72V
10.Max No-load RPM: 950RPM
11.Max Efficiency: 88%
12.Max current:80A (Peak 100A in short time)
13.Brake type: Disc brake
14.Rear Fork width for installation: 170/190mm
15.Winding Core material: Aluminium
16.Cross Section of Phase wire: 10 mm2
17.Hall sensor phasing angle: 120 degree
181920.Max. Working Temperature: 70 degree, Peak 120 degree
20.Waterproof Grade: IP54
170 motor diagram
190 motor diagram

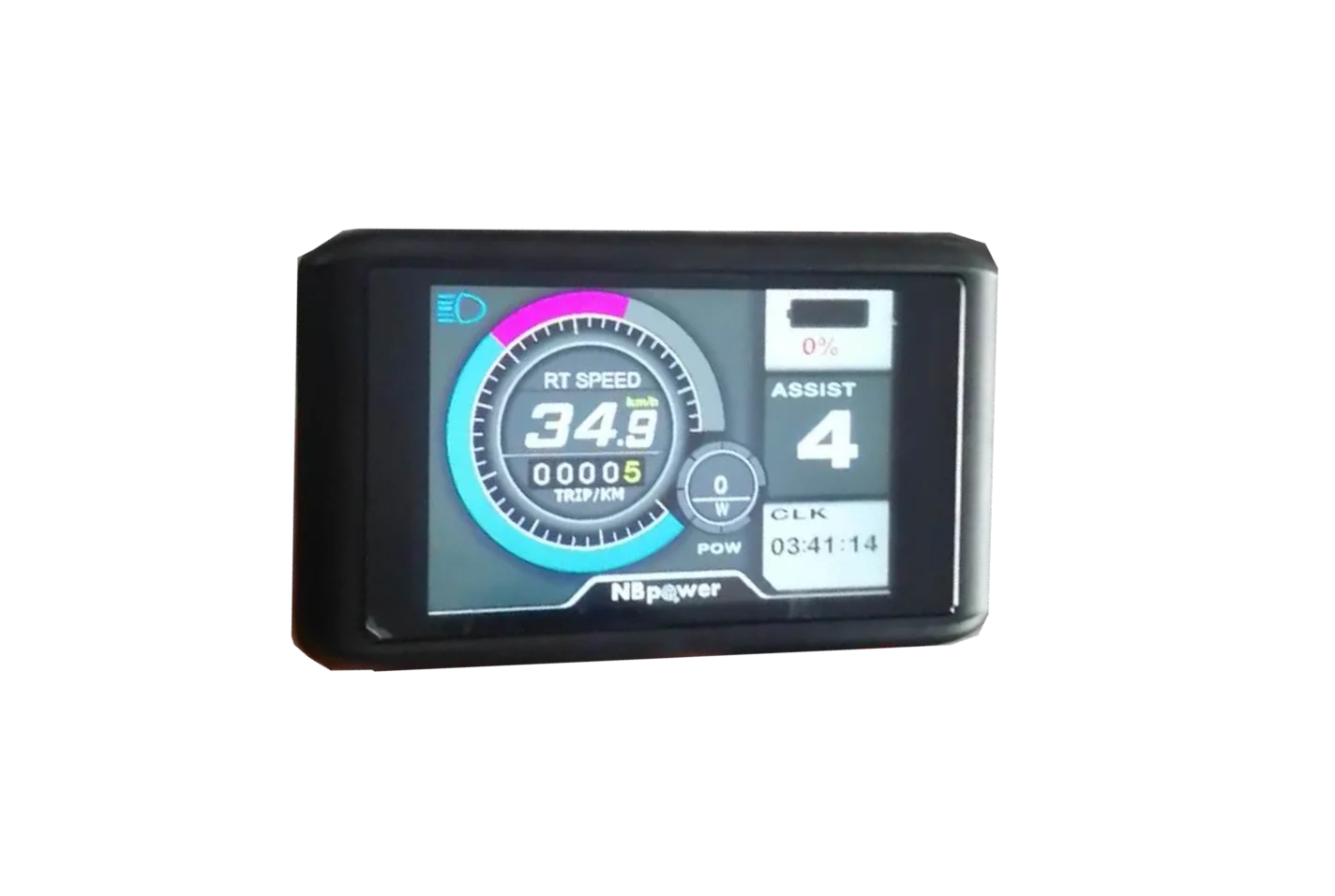

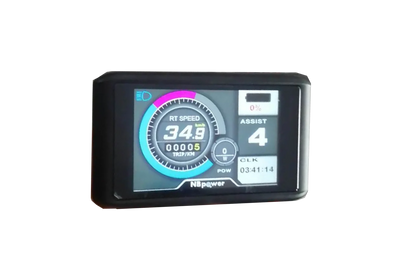

2. UKC1 Color Display
what is sine wave?
4. Others
if you need other type such as half twist/Thumb twist throttle, please contact us before order
| Color |
20x4.0 190mm, 24x4.0 170-175mm, 20x4.0 170-175mm, 26x4.0 190mm, 24x4.0 190mm, 26x4.0 170-175mm |
|---|---|
| Ships From |
China Mainland, United States |
