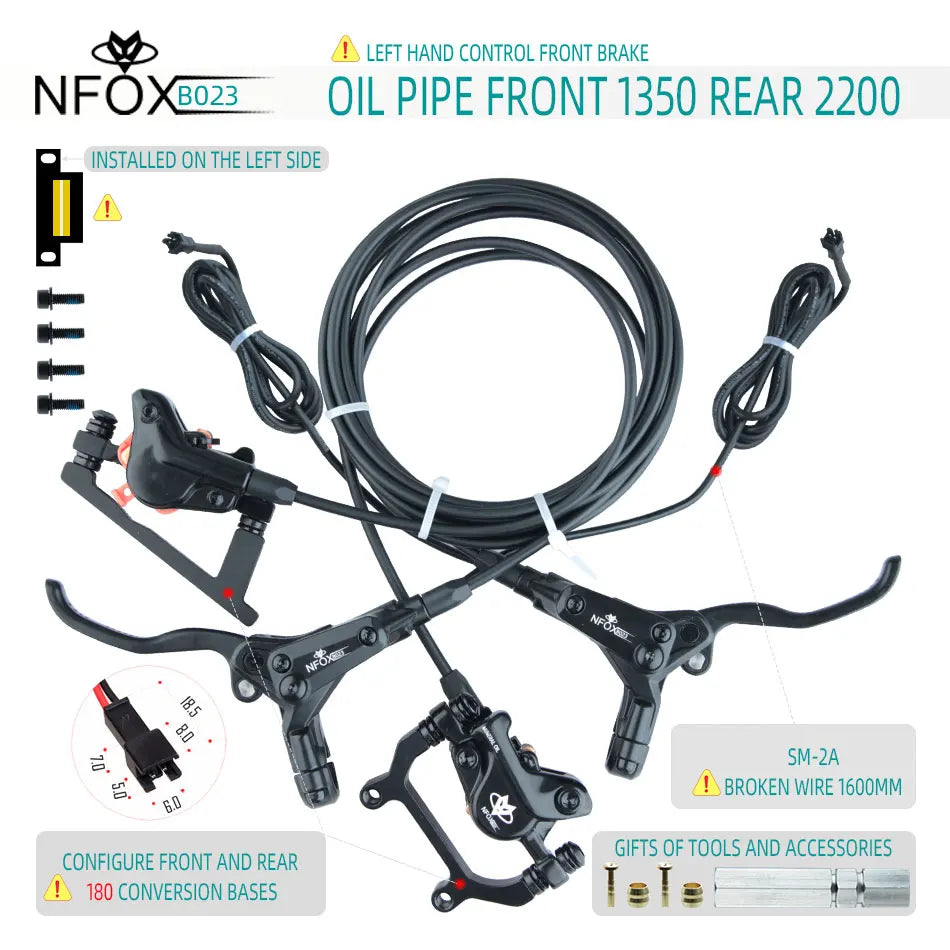

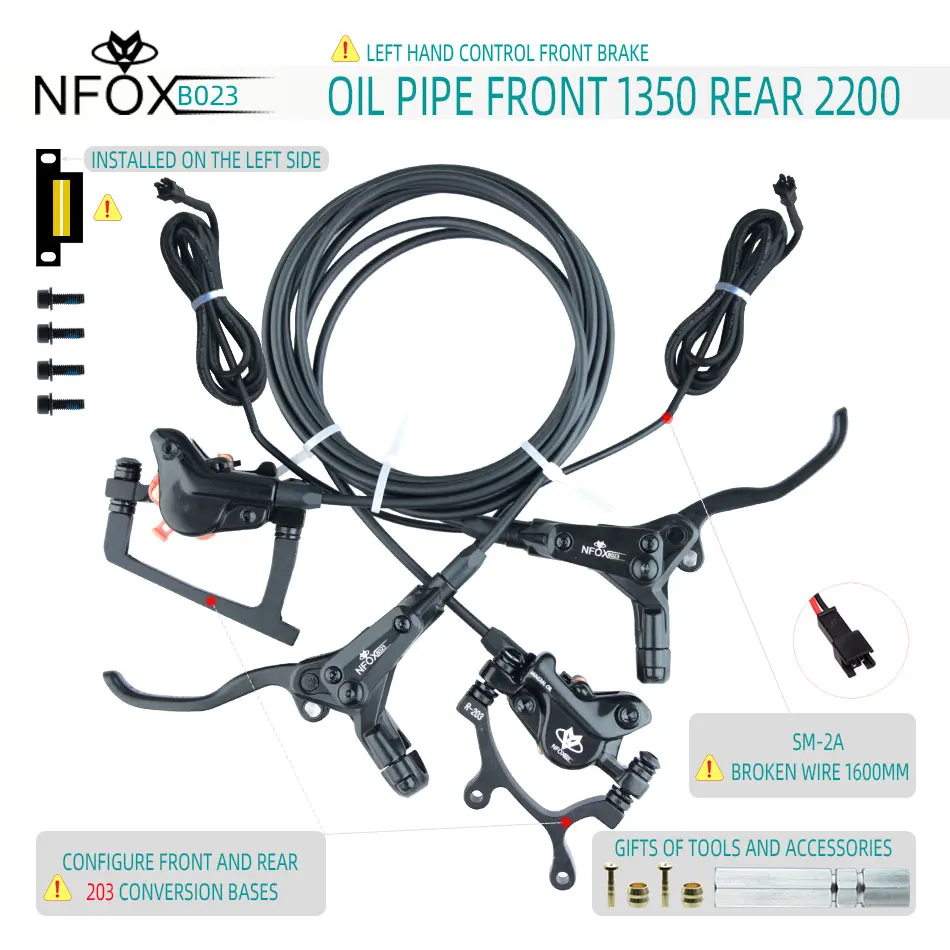

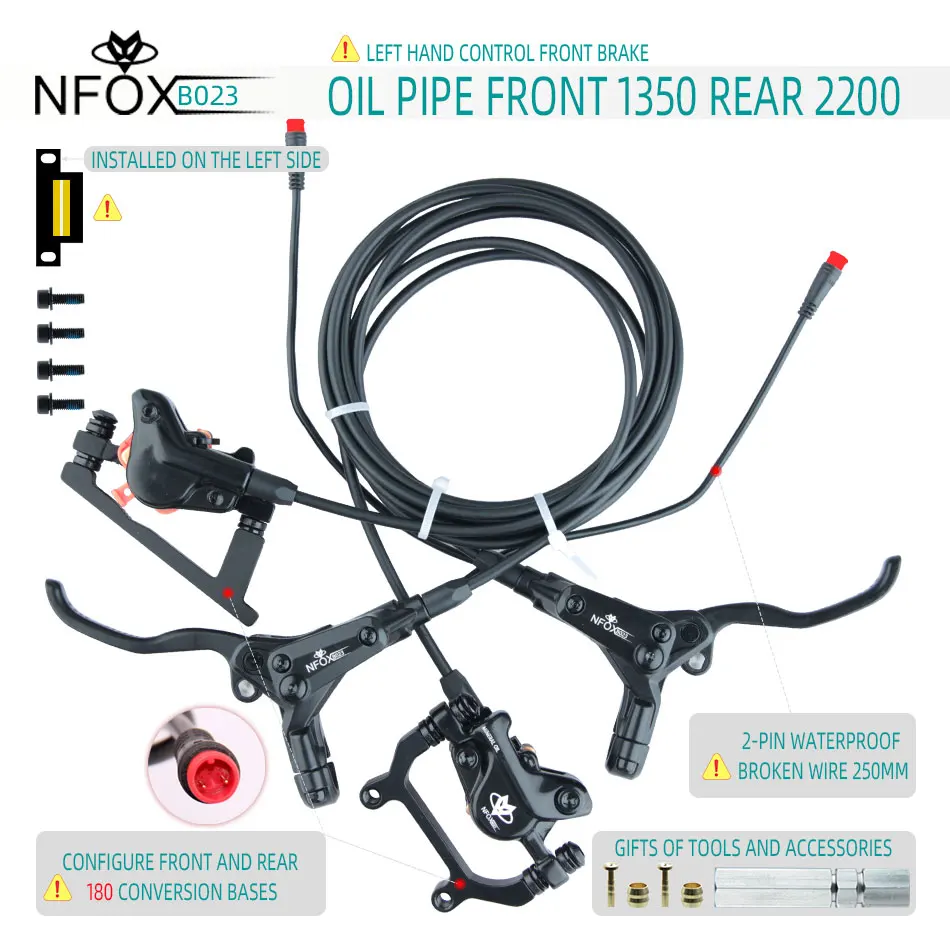

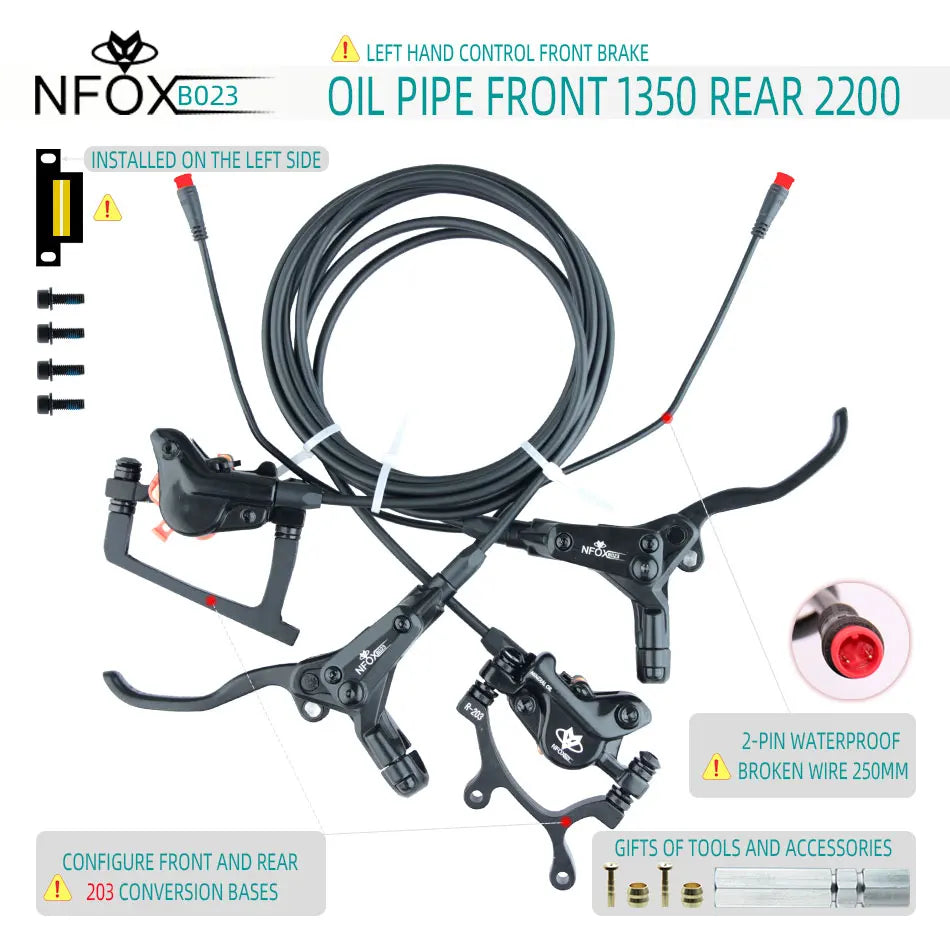

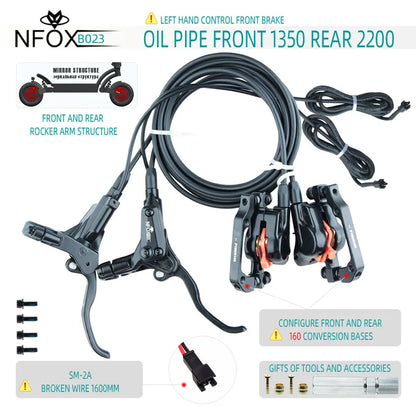

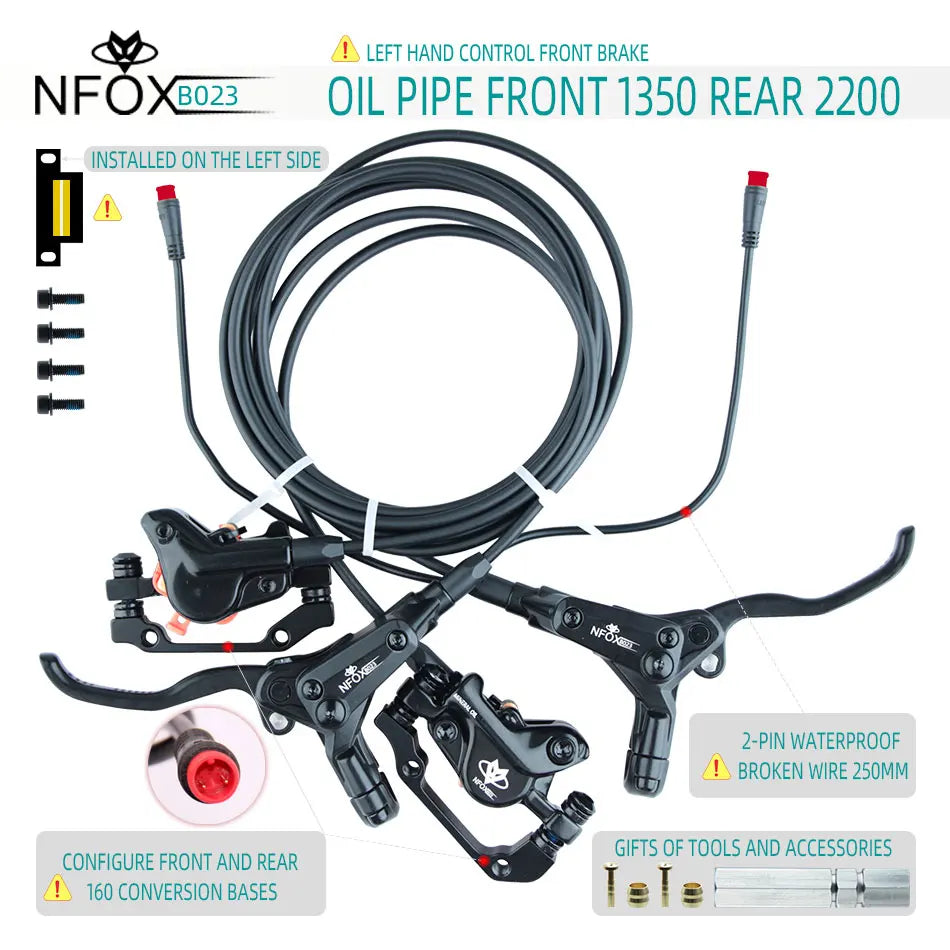

The above picture shows a 2-pin power outage brake, which can only be installed on the left side (please note this is very important)

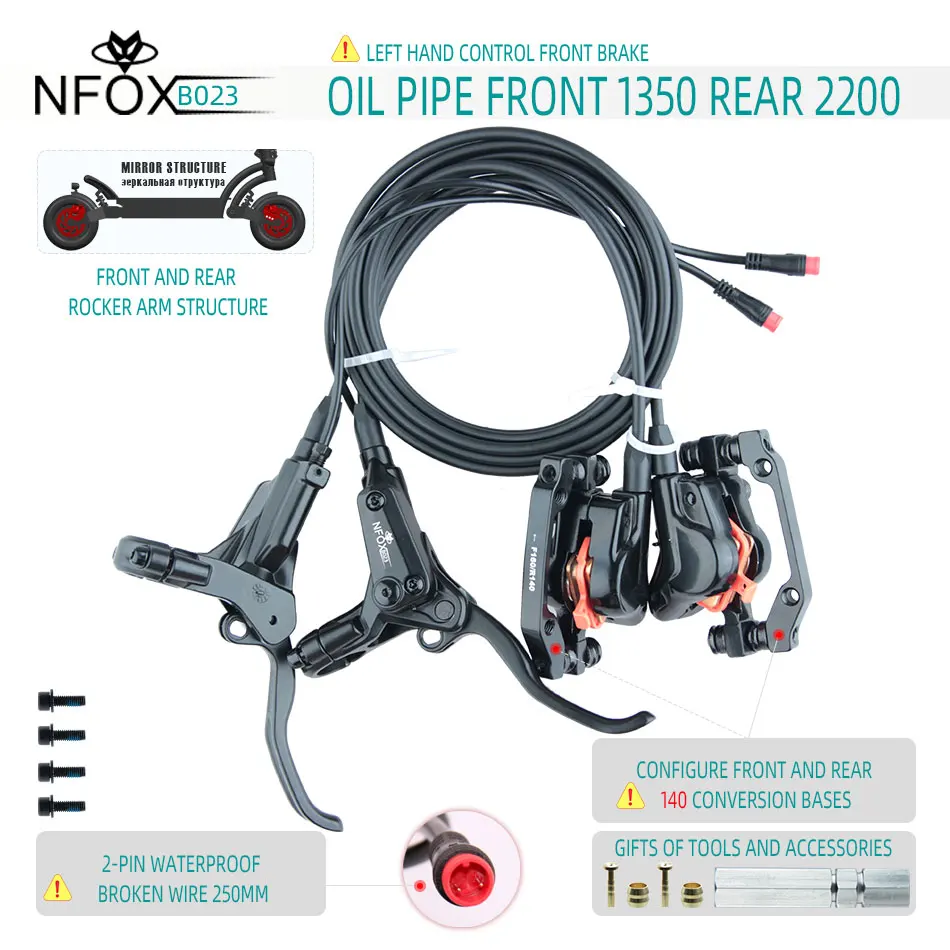

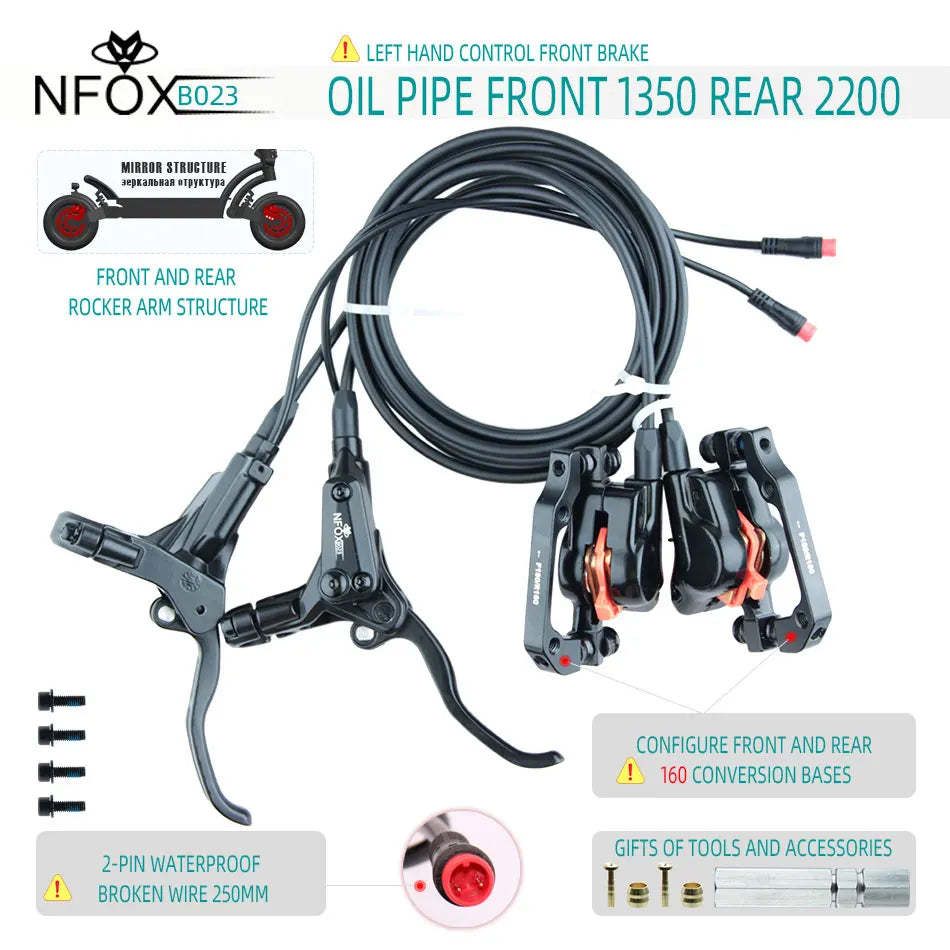

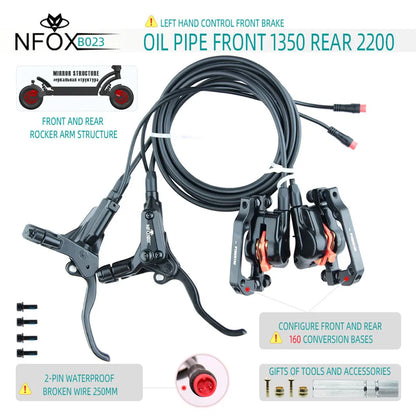

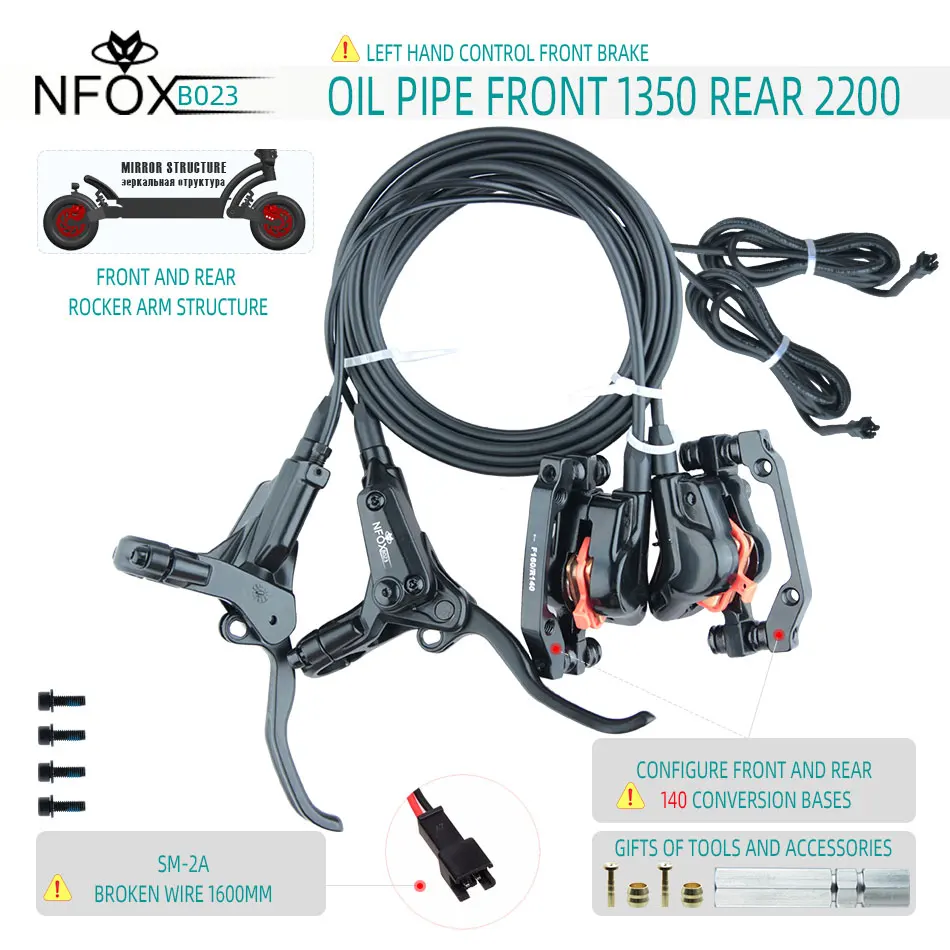

This is a special configuration, which can only be adapted to the Motorized scooter with front and rear rocker shock absorption!

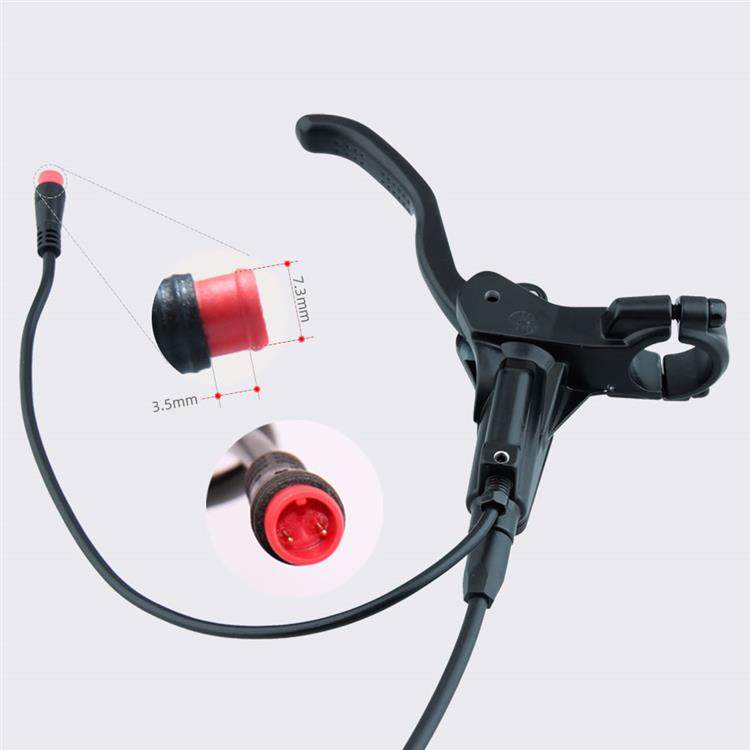

The brake handle comes with a 2-pin waterproof broken wire, please measure the size and check whether it is suitable for your car

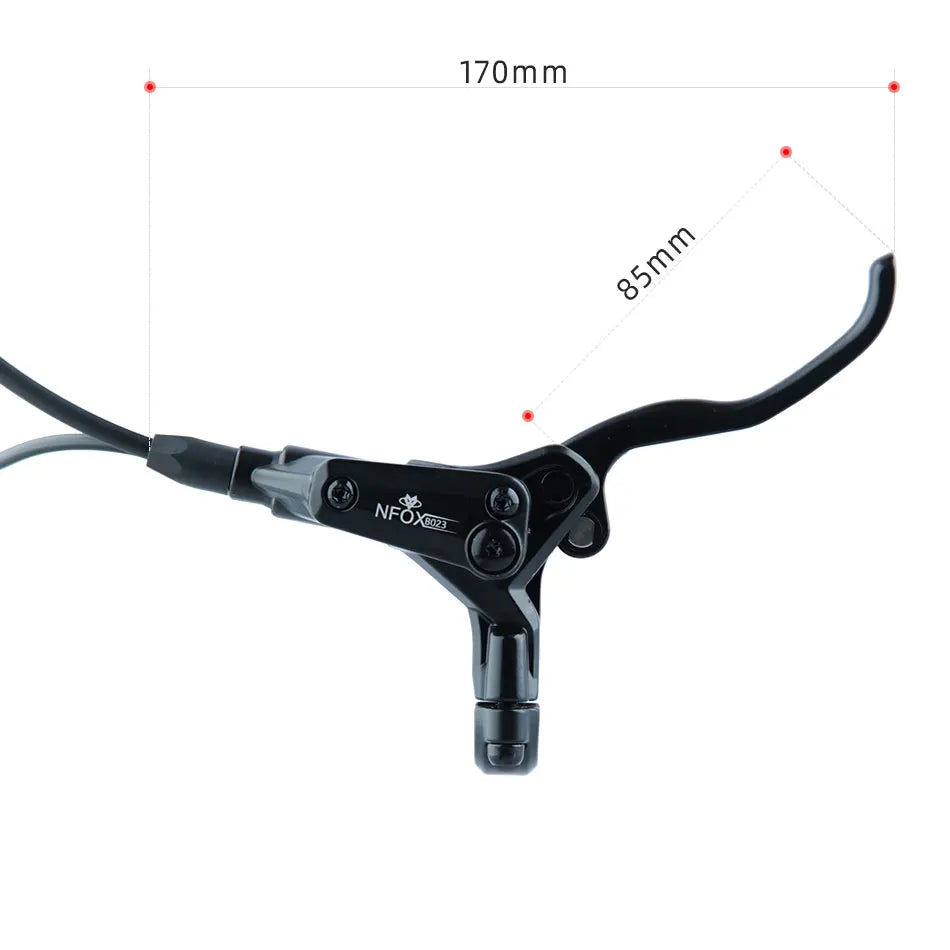

Please refer to the approximate dimensions of the brake lever and the length of the lever for reference

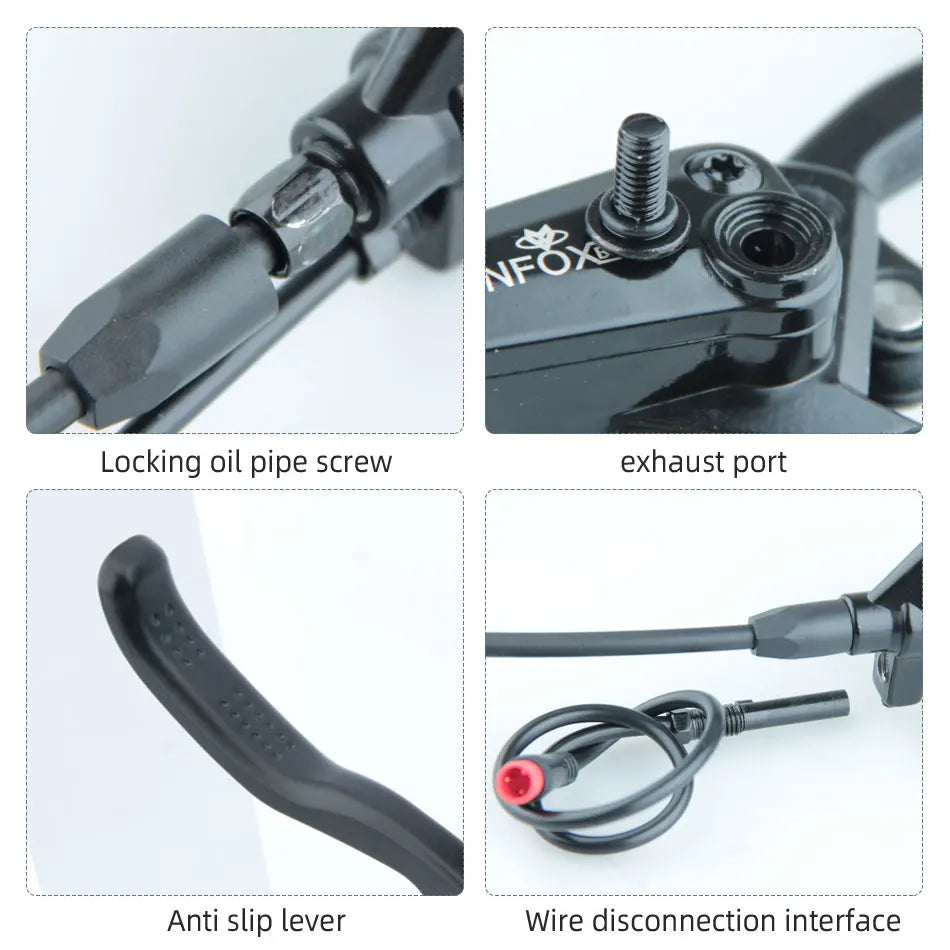

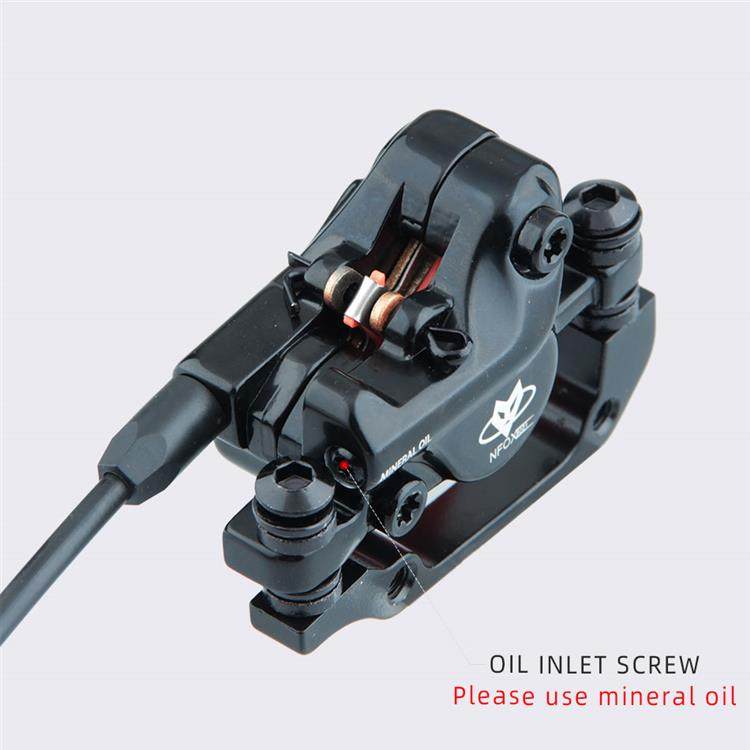

The picture shows the oil port screw of the brake caliper, which is used when replenishing oil, and uses the T15 torx wrench to remove the screw M5 oil head to enter and exit the oil

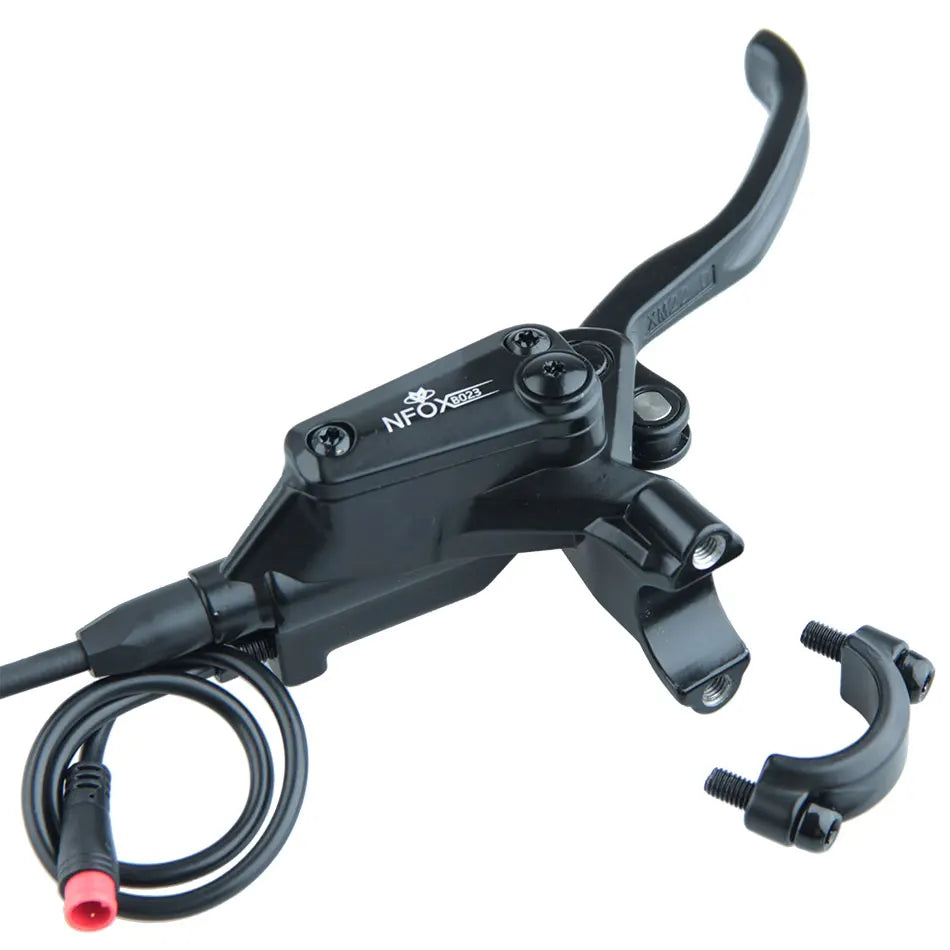

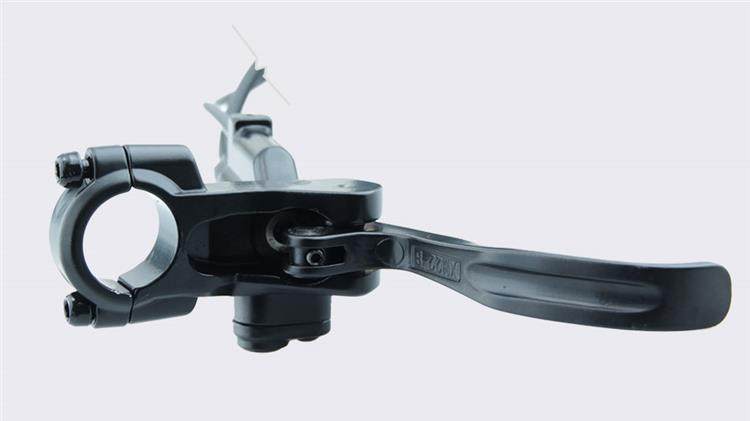

The installation method of the brake handle is split, so it is very convenient to repair or install a new car without disassembling other accessories!

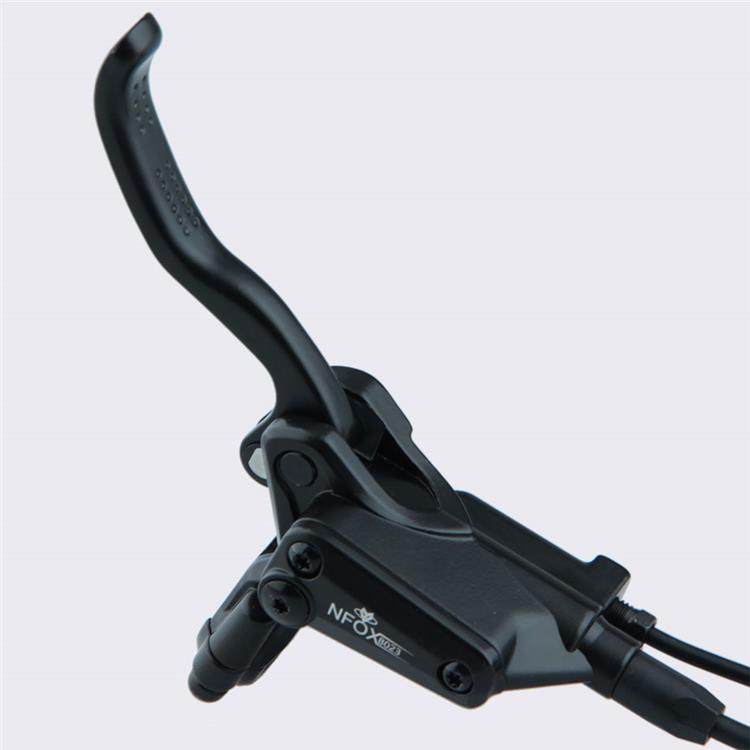

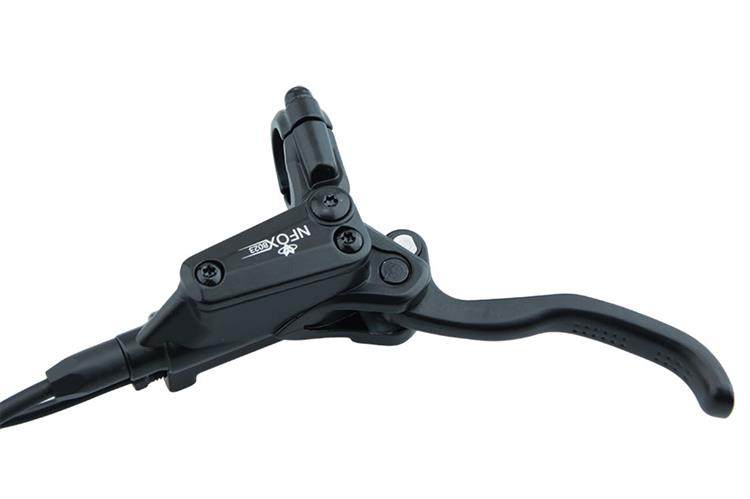

The technology of the brake handle is also very good, what you see is what you get, and there is an anti-slip design on the handle.

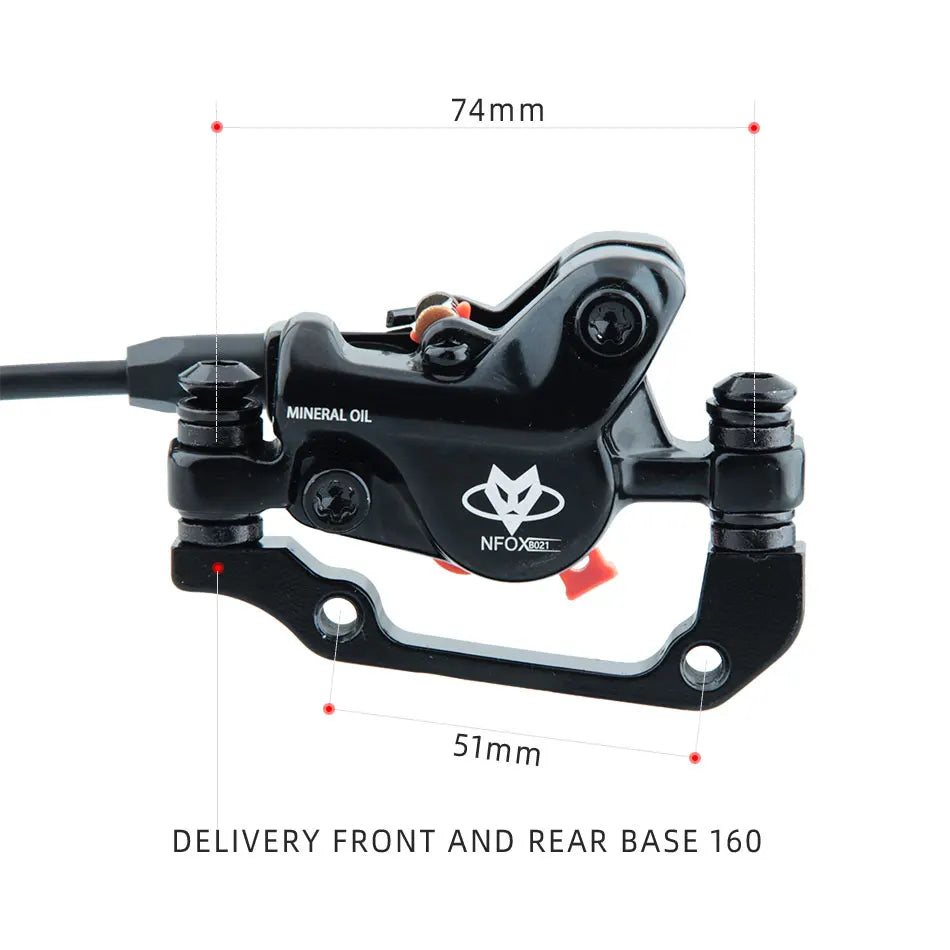

Important installation dimensions of brake calipers are standard 51 and 74, and measurement checks are recommended

The brake handle can be installed on the handlebar about 22mm, and can be used for standard models. It is recommended to measure and confirm!

The brake handle is made of aluminum alloy die-cast and durable, and it should also be noted that the aluminum alloy has no high hardness of steel, so do not use too hard when installing the screws, generally 2 fingers can not be screwed!

The locking screw of the brake lever is M8, the oil port screw is M5, and the broken wire is designed for magnetic induction

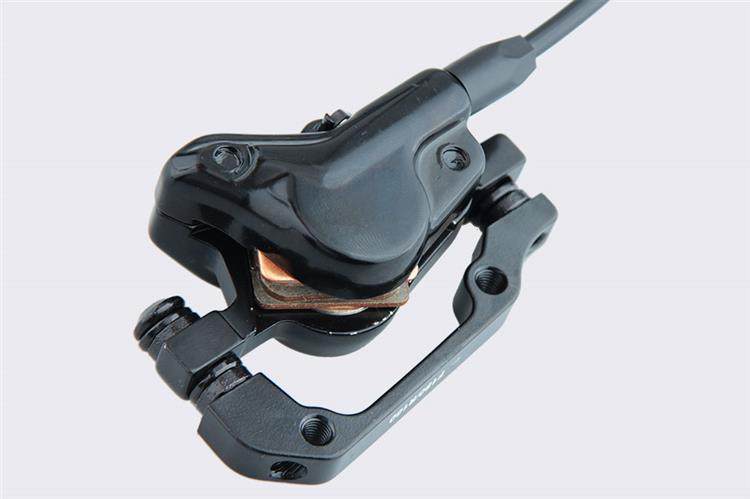

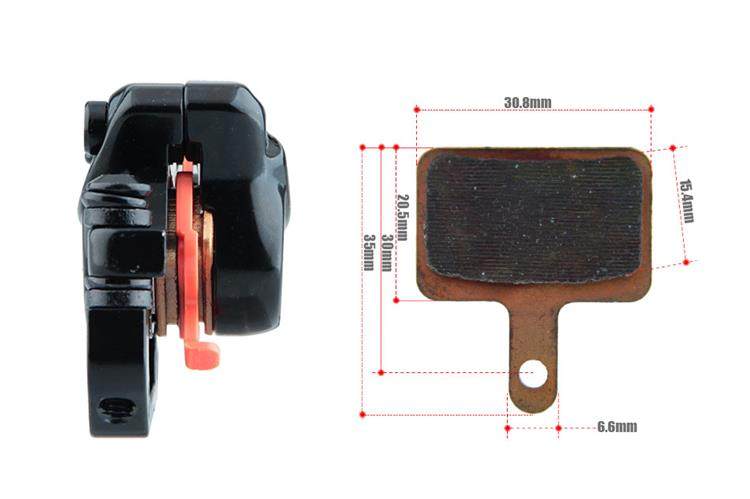

The callipers use a 30 * 20 rectangular structure with good compatibility, which is very common in the market and can be sold in stores

The caliper base is equipped with a balance screw, which makes it easy to adjust the brake.

The caliper is designed with left and right double oil cylinders, with uniform force and rapid rebound

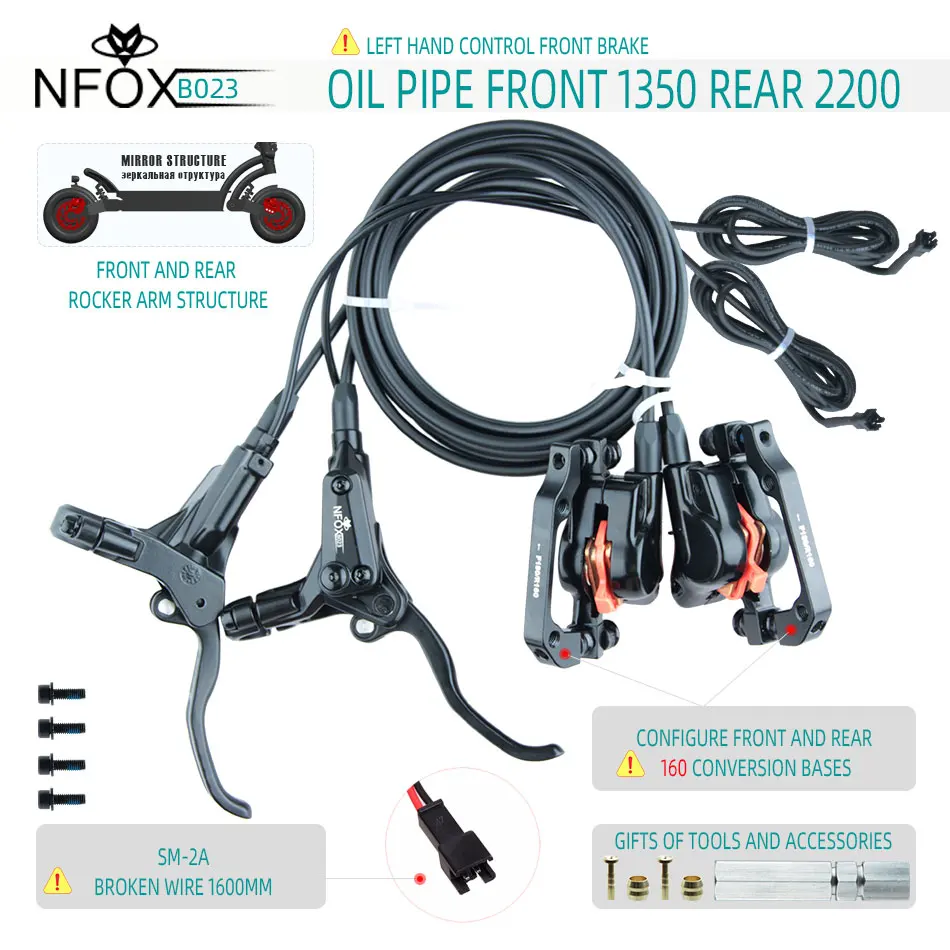

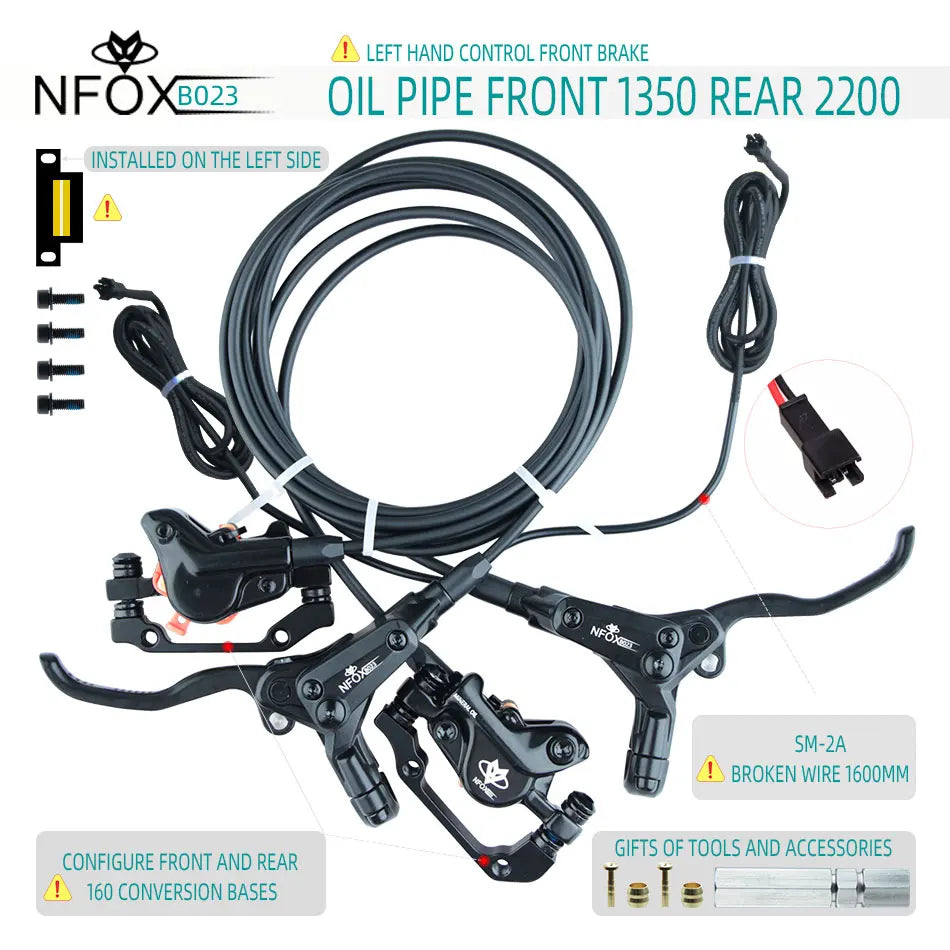

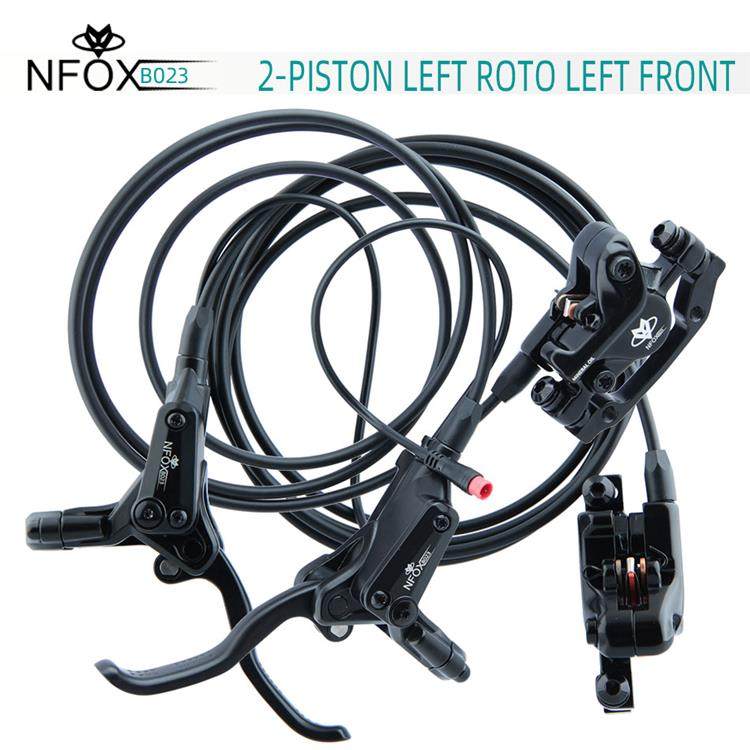

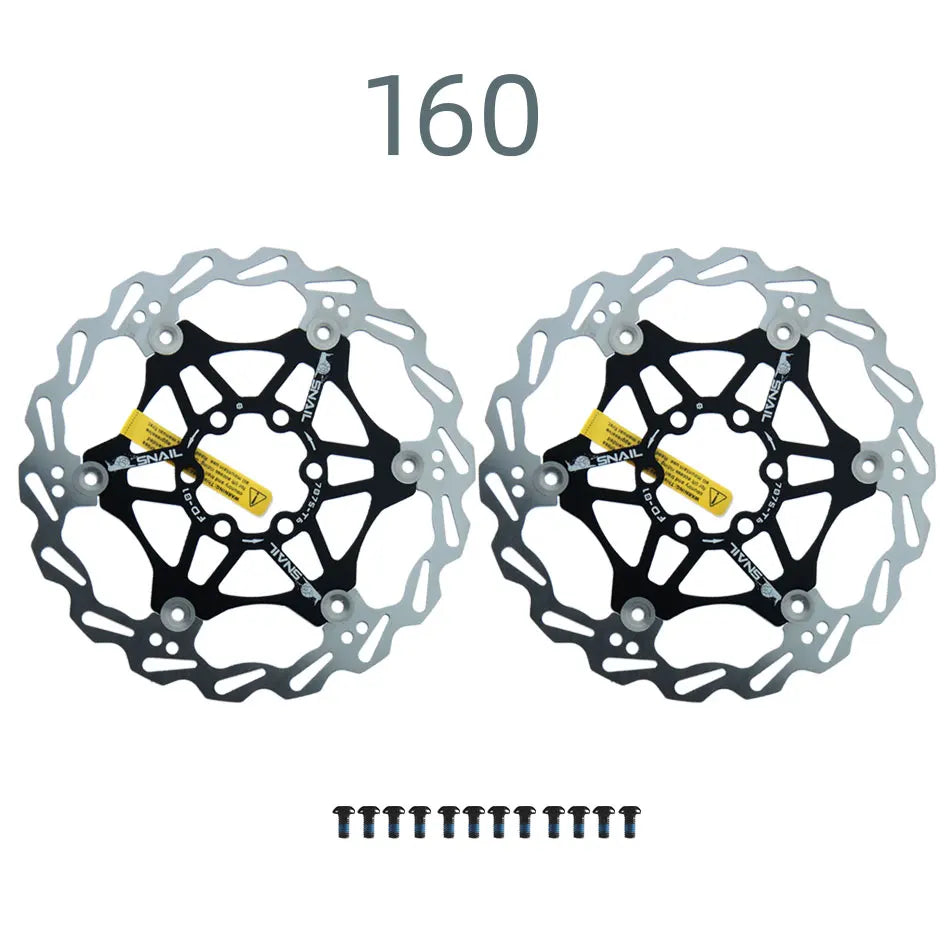

The picture above is a 2-pin power-off brake, which can only be installed on the left side of the configuration to adapt to the 160 brake disc, please refer to the actual shooting

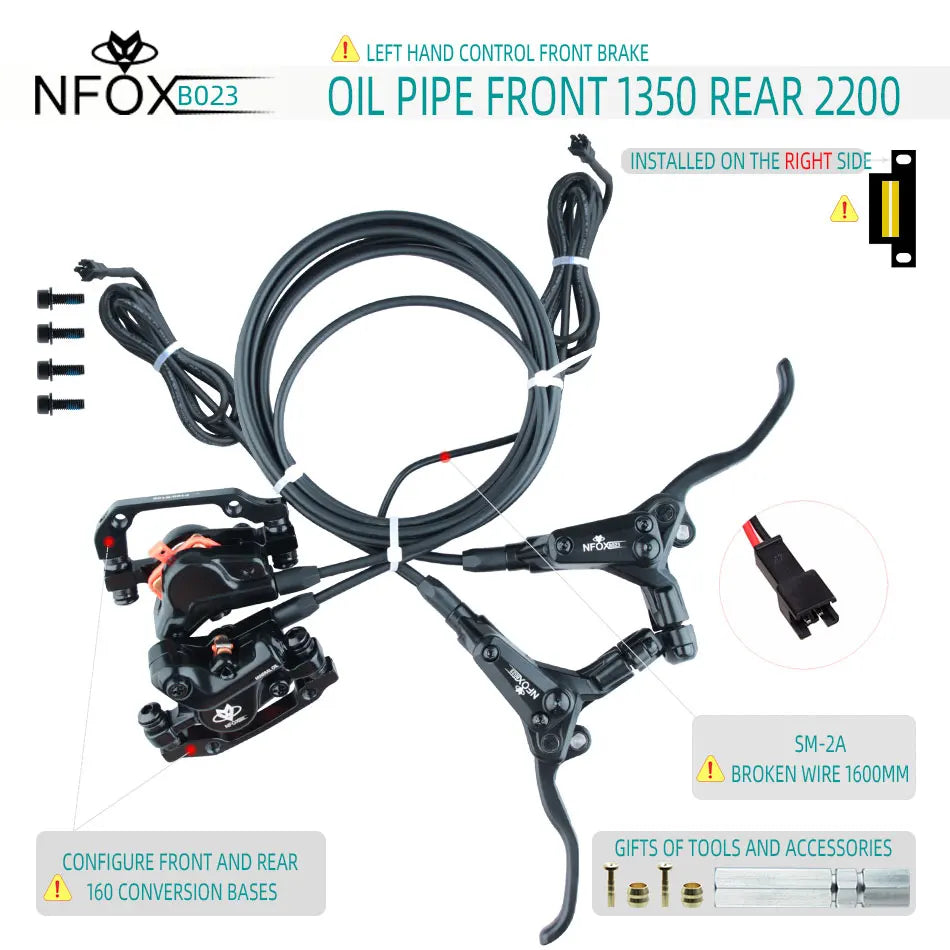

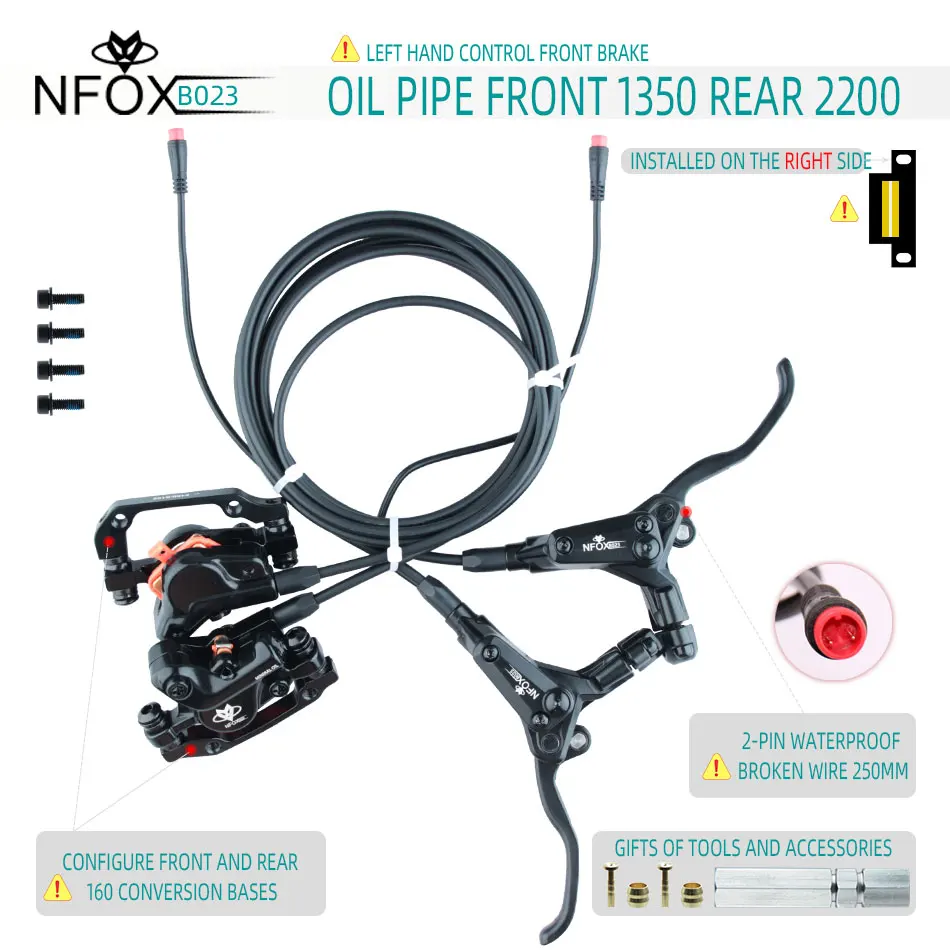

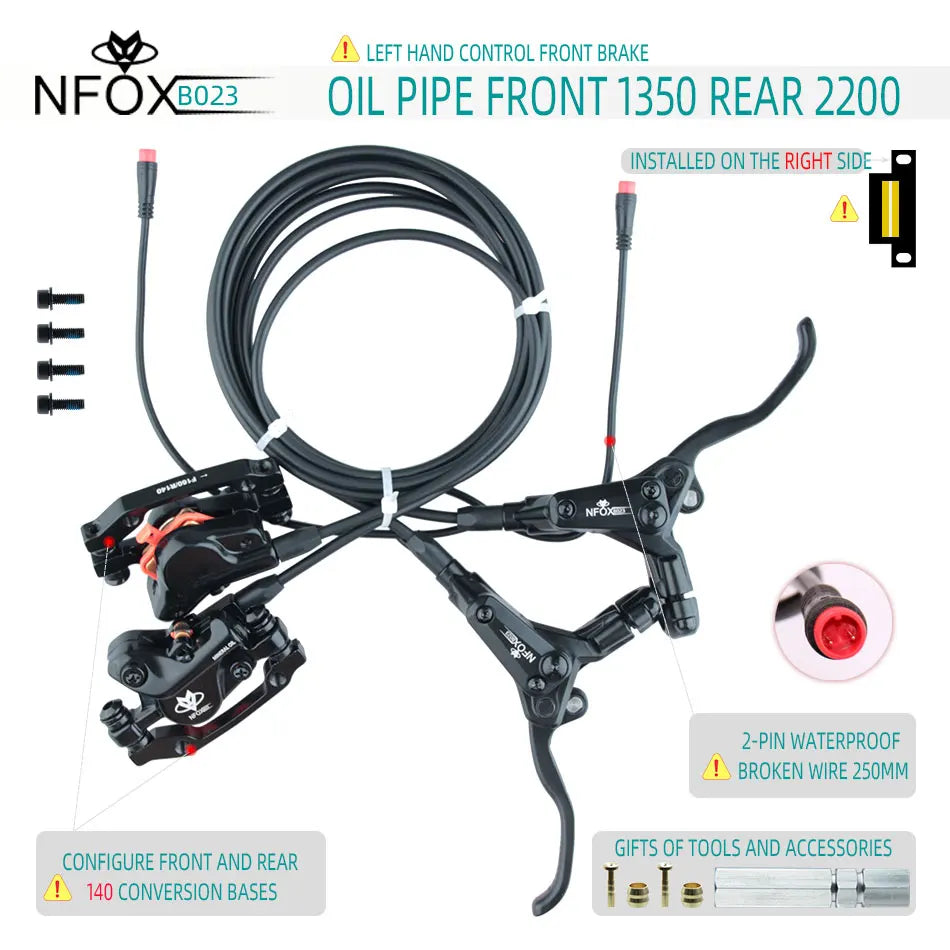

The above picture shows the 2-pin power off brake, which can only be installed on the right side and is compatible with 160 brake pads. Please refer to the actual photo for reference

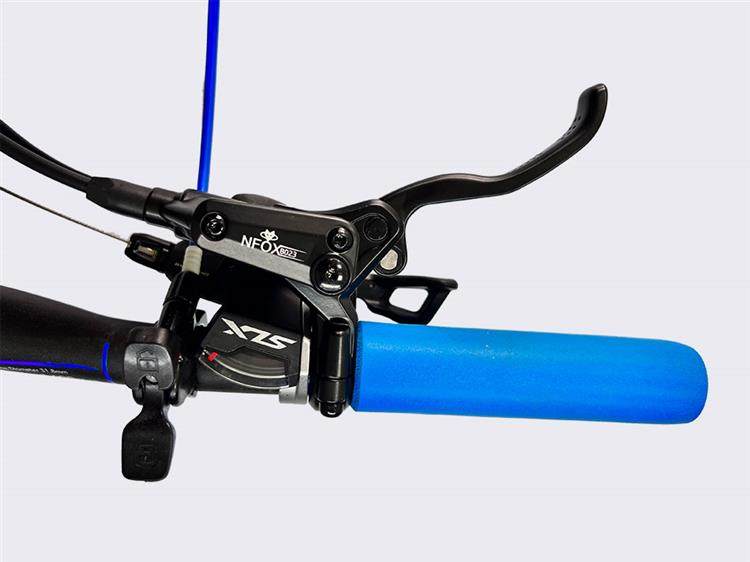

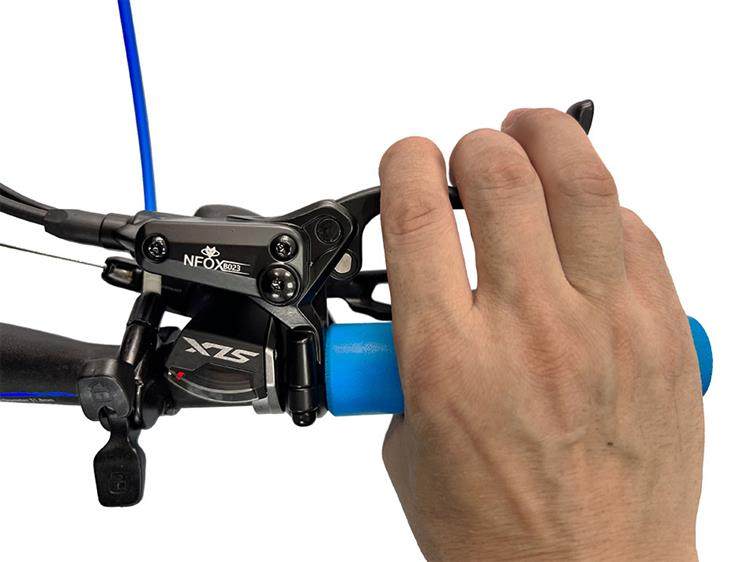

The above picture shows the actual shooting effect of the brake handle after installation, please refer to it!

The picture above is a simulation of the braking effect, please refer to the actual shooting

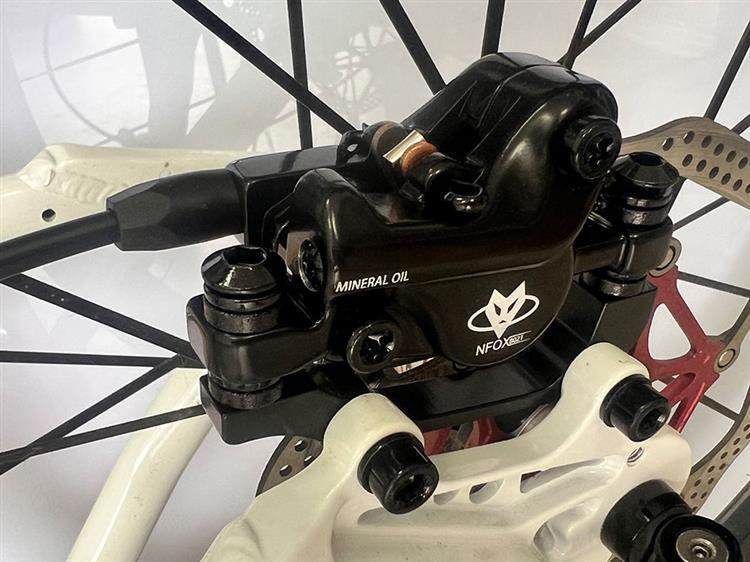

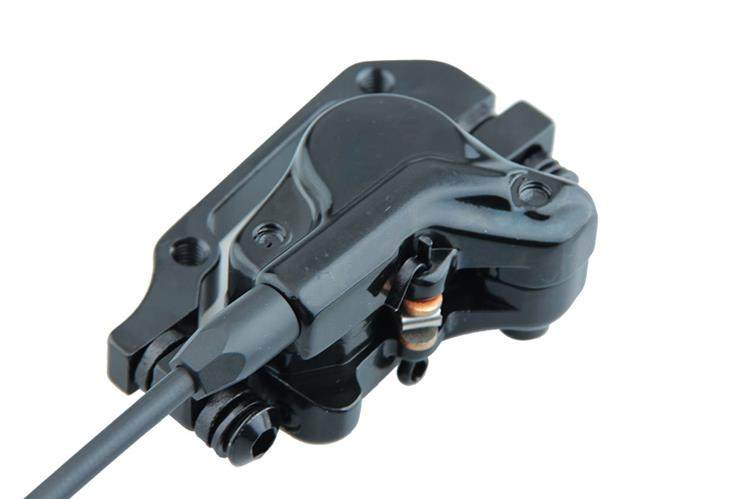

The above picture shows the actual shooting of the installation effect of the caliper. Please refer to

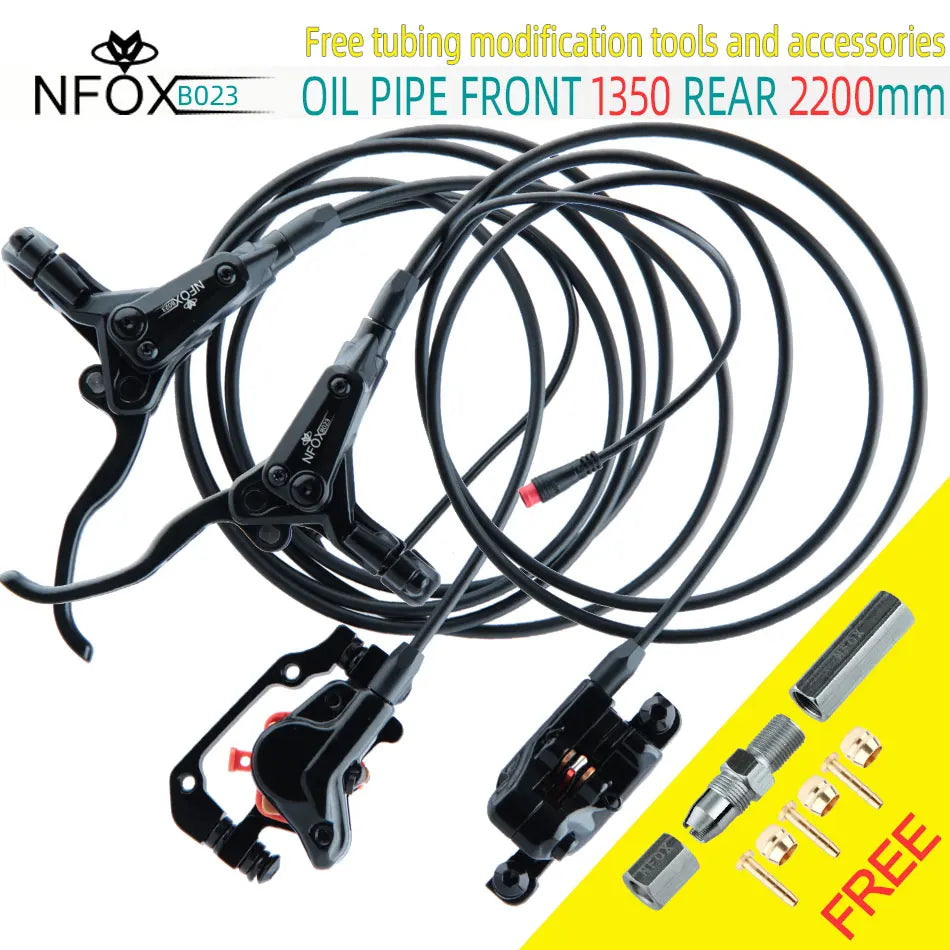

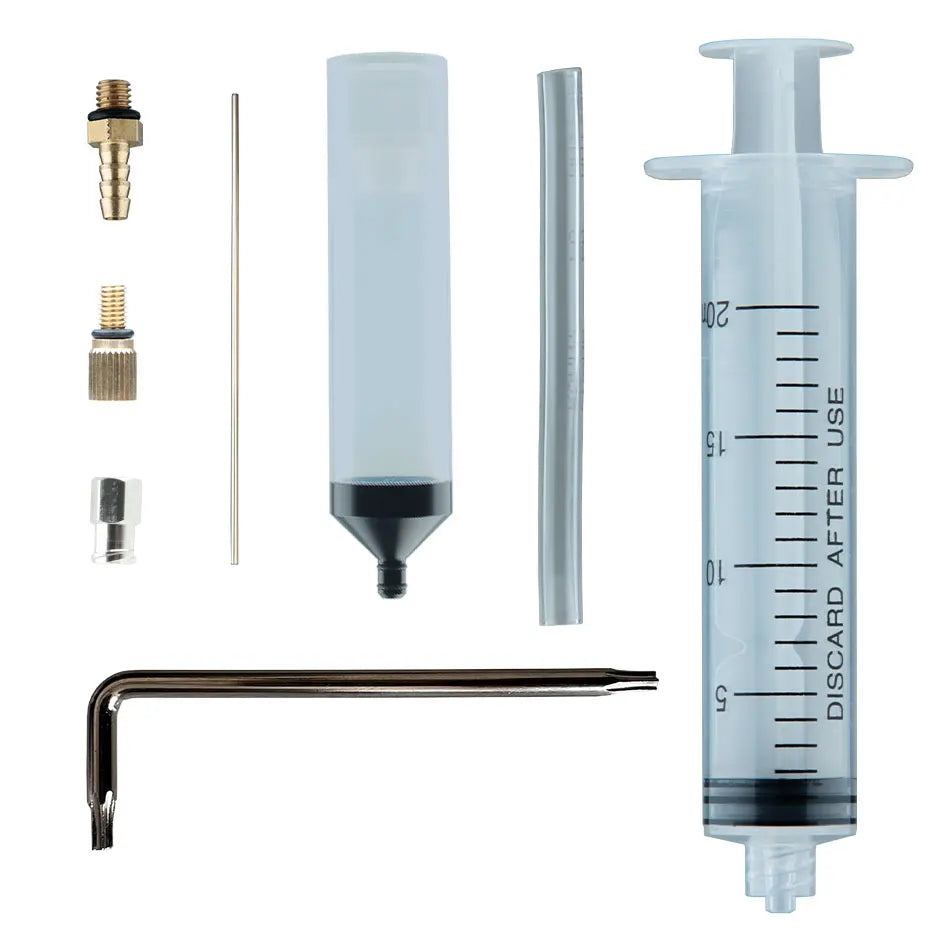

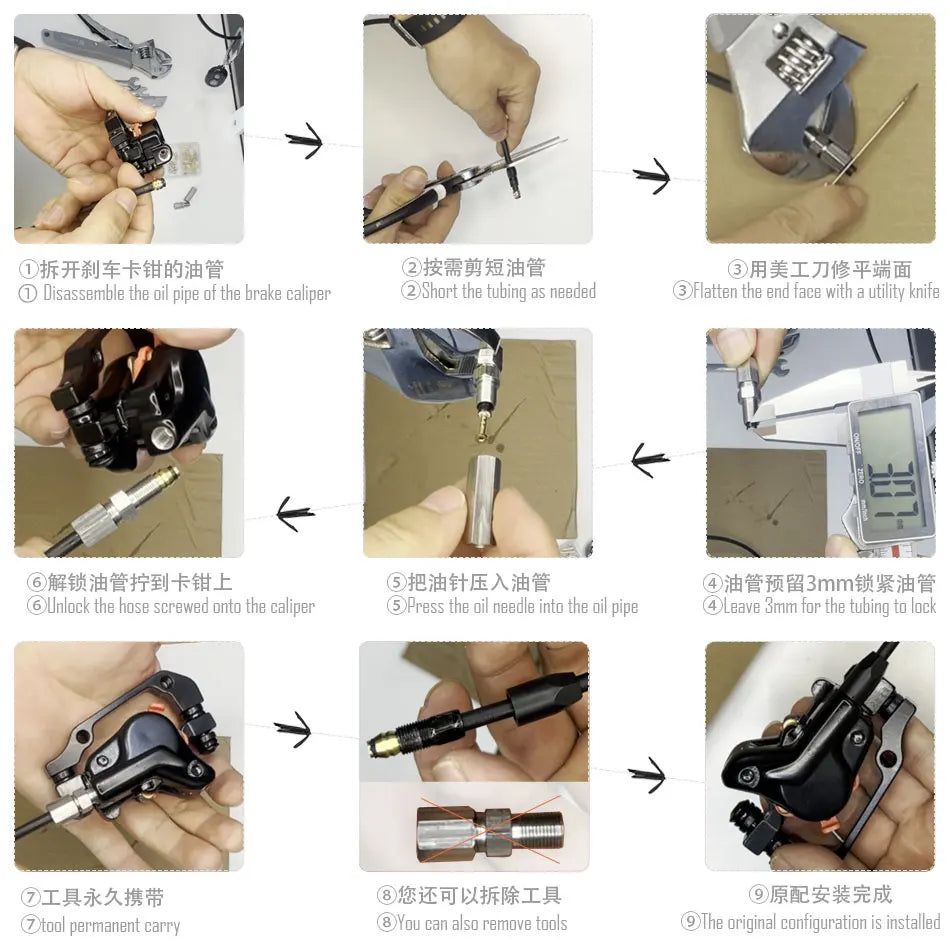

The above picture is a simple tutorial on shortening the oil pipe. The dimensions of the oil pipe we shipped are 1350 in the front and 2200mm in the back. If the oil pipe is too long, you can install it according to the instructions above. We have provided a very powerful installation tool, which is both a tool and an accessory, and it is very practical!
