EU US Stock for Ridstar Winter Ridstar H20 Ebike Battery 48V 13Ah 16Ah 17Ah 17.5Ah Battery for Ridstar Winter H20 Folding Bike

EU US Stock for Ridstar Winter Ridstar H20 Ebike Battery 48V 13Ah 16Ah 17Ah 17.5Ah Battery for Ridstar Winter H20 Folding Bike
$658.99 USD
$0.00 USD $658.99 USD
Sale Sold out
people are viewing this right now
Size chart
Ships From
Color: 48V 17.5Ah

SKU:14:200006154#48V 17.5Ah;200007763:201336106

Only 17 left in stock!
View Product details
product-img
EU US Stock for Ridstar Winter Ridstar H20 Ebike Battery 48V 13Ah 16Ah 17Ah 17.5Ah Battery for Ridstar Winter H20 Folding Bike
$658.99 USD
$0.00 USD $658.99 USD

SPECIFICATIONS

BMS: 30A

Battery Type: Built-in Folding E-Bike Electric BicycleBattery

Brand Name: ACEBEI-POWER

Capacity: 10 - 20Ah,13Ah-17.5Ah

Cells: Brand/LG/Samsung/Panasonic 18650 3.7V Cells

Certificate: CE UL RoHS UN38.3 MSDS

Certification: CE,RoHS

Cycle Life: 800~1000 cycles

Fit for Bike-1: Ridstar Winter

Fit for Bike-2: Ridstar H20

Fit for Motors: 0-1000w

High-concerned chemical: None

Model: DCH-009

Origin: Mainland China

Type: Lithium battery

Voltage: 48v,48V / 52V optional

Warranty: 1 Year







Fit for: Mate X bike, Engwe Engine Pro (16 Ah Version) and Ep-2 Pro（13 Ah Version),

             CMACEWHEEL RX20, Lankeleisi x3000plus, Bezior XF200, Ridstar Winter, Ridstar DC-26,                  Ridstar H20, Ridstar H26 , Ridstar H26 pro ebike



Battery Specification:

Battery Parameter

48V 13Ah

48V 15Ah

48V 16Ah

48V 17Ah

48V 17.5Ah

52V 17.5Ah

Cells

Brand
2600mAh

Brand
3000mAh

Brand
3200mAh

Panasonic
3400mAh

Samsung/LG
3500mAh

Samsung/LG
3500mAh

Composed Type

13S 5P

14S 5P

Battery Weight(appr.)

4kg

4.25kg

Charging
Cut-off Voltage

54.6V

58.8V

Discharge
Cut-off Voltage

39V

42V

Fit for Motors

48V 0-1000W

48V/52V
0-1000W

Charger

3A faster charger

3A faster

charger

Charging Time

4-5h

5-6h

5-6h

5.5-6.5h

6-7h

6-7h

General Parameters:

BMS

30A Smart BMS

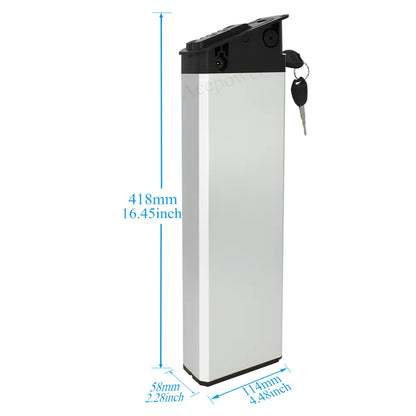

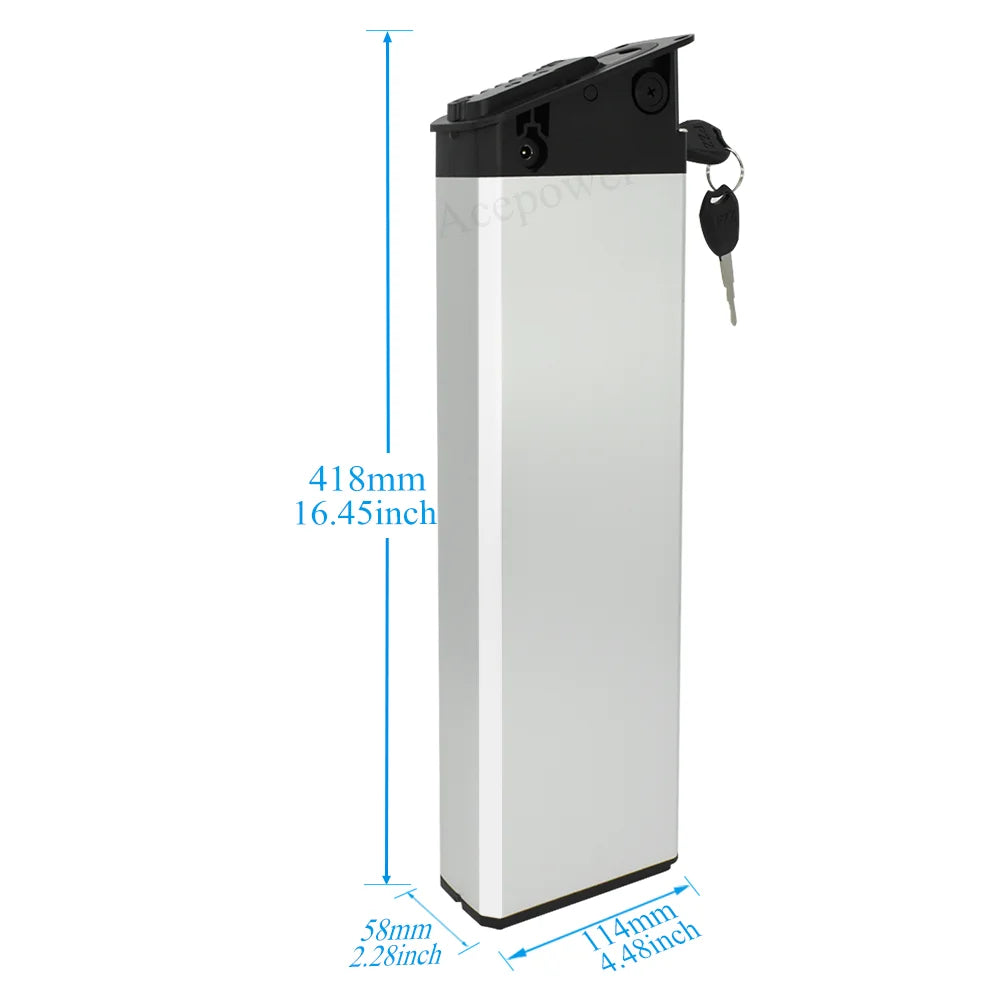

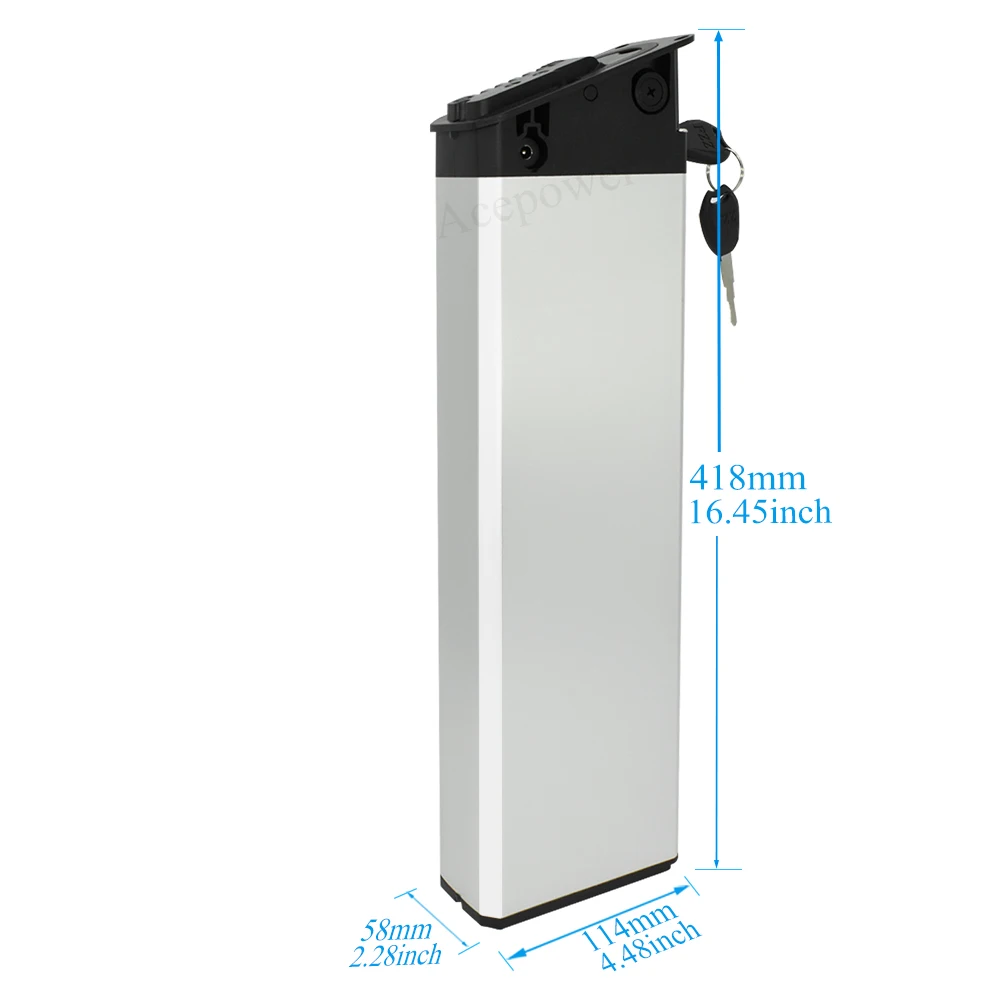

Battery Size(appr.)

58*114*418mm

Discharge Temperature

-20~65°C

Charging Temperature

0~45°C

Cycle Life

80% Capacity after 800 cycles

Warranty

1 Year

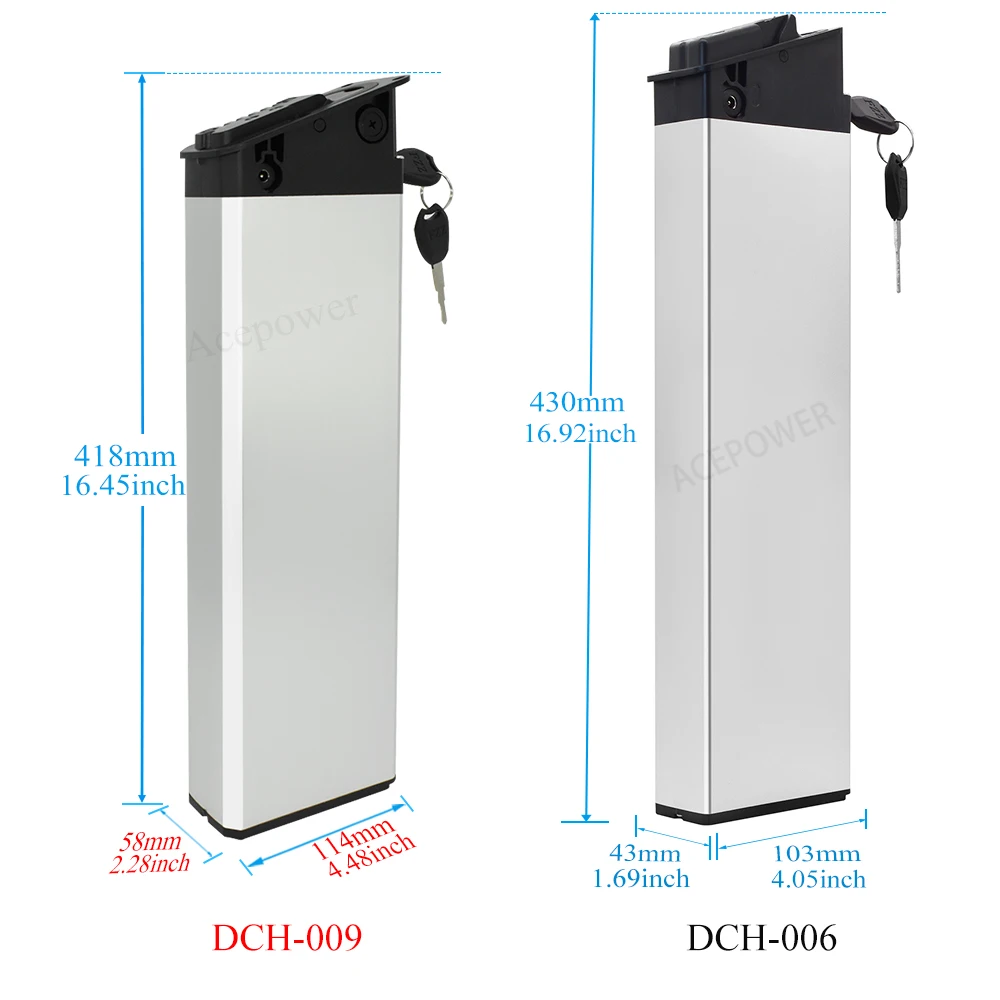

Note for Engwe Engine Pro/Engwe ep-2/ep-2 pro/ BEZIOR XF200 ebike:


Old version ebike used with DCH-006(43x103x430mm) thinner battery;


New version ebike used with DCH-009(58x114x418mm) fatter battery.


Current link item is 009. If you can't sure what version of your ebike and can't sure which battery to choose, Please send us your old battery photos, we'll check for you.



!!!Attention:

Current link is item DCH-009，not DCH-006, they are similar models, but not the same model, they have different sizes, please be sure to pay attention to the size when ordering to avoid wrong orders

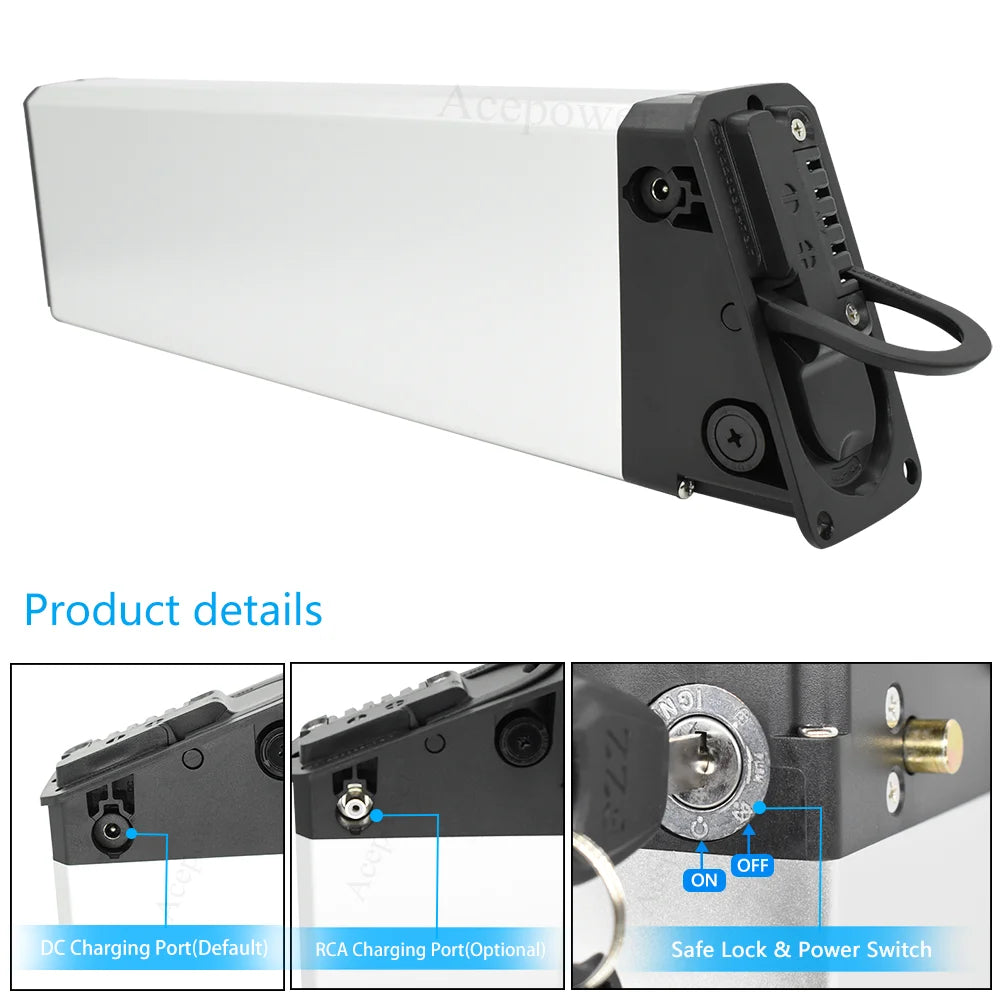

#About the charging port#:


There are two optional charging ports, RCA charging port and DC charging port.
The default is DC charging port.



Notice:

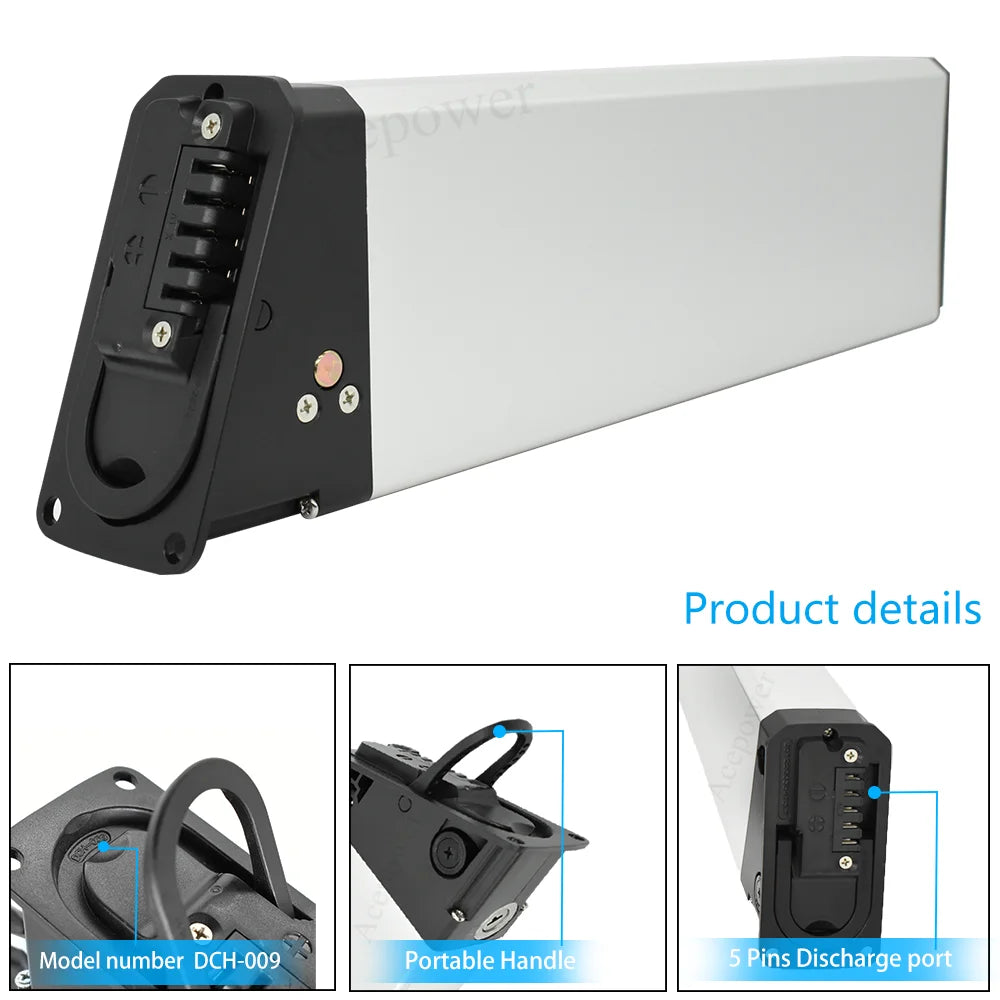

Important Notice for DCH-009's lock design:

Function 1. Lock the battery inside the bike frame.

Function 2. The lock is also the battery's power (on/off) switch. (all battery with function 1 and function 2 by defaultly)


Charger and Discharge Connectors:

1. Charger Plug : AU/ UK/ EU/ US  plugs optional, will provide according to delivery country if without requested.
2.  Battery discharge Connector : There are 7 kinds optional connectors as below picture, will provide naked  cable or soldered with our default whole pairs connector if without requested.

Product: Battery

12 MonthsQuality warranty

1. We provide 1 year warranty for all electric bike batteries.
2. Any battery with quality problem in one month we can return the money after you provide the proof.
3. After one month we can send BMS or cells to you for repair, or you can send it back local warehouse or us to repair as well.
4. All our electric bicycle batteries with high quality cells and BMS, made by skilled craftsmanship and they will be 100% strictly several times tested before shipping.

Condition

The warranty is not valid if the battery is entered water, or damaged by man-made, or used over-power/ over-voltage, or if it is damaged due to incorrect operation, or if it's over-warranty time.

Whenever has any problem (including above problem or over-warranty), you also can contact us to provide relative details and we will help or provide suggestion.

Payment & Delivery

1.  The payment does not include remote fee, if your address belong to remote address, please contact with us about remote fees before you place order.

2. Battery can't be delivered to any Island address, please contact us for checking before you place order to Island address.
3. All batteries send by battery special channel, the tracking information will be updated once it finish customs clearance. Please kindly don't worry and help to wait more days if you can't track it.


Note

1. Each countries postal code is necessary to provide for international shipping, please make sure your city name and postal code are correct and matched. (including Ireland)

2. Korean customers need to provide your "individual customs pass number" or date of birth on order note as Korean recently rules.

3. Japanese customers need to provide Japanese address and contact information

Feedback

Your satisfaction and positive feedback is very important for us.

It will be very kind of you to leave us with 5 Stars feedback if you are satisfied with our items and services.

If you have any problems, don't hesitate to contact us, we will do our best to serve with you.



Q: What type of this electric bike battery?
A: It is Li- ion battery,Chemical is Li(NiCoMn)O2.

Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery?
A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.

Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C

Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.

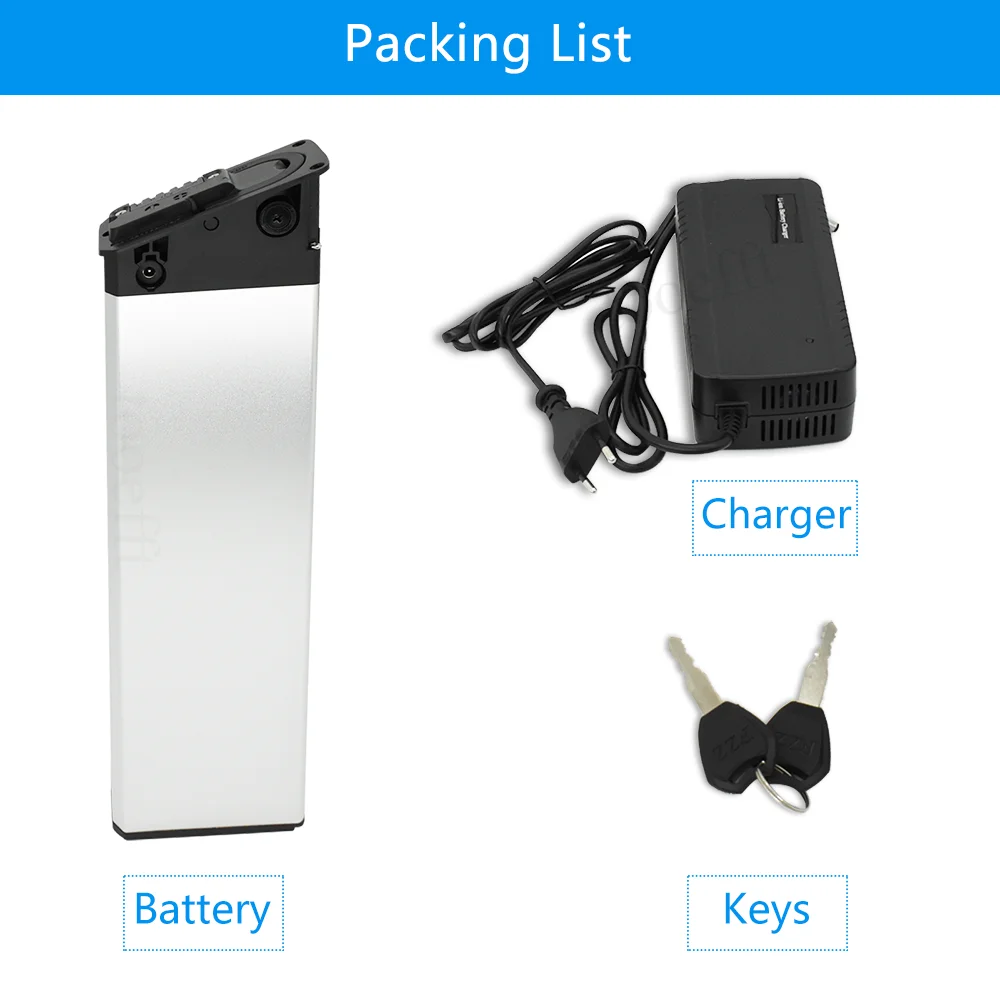

Q: Do your e-bike battery come with charger?
A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us.

Q: Do your electric bike batteries come with BMS?
A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.

Q: Does your electric bicycle battery come with quality warranty?
A: Yes, we provide 1 year warranty for all electric bicycle batteries.

Q: What's your delivery time?
A: Electric Bike Battery will be sent out within 7 days after confirmed order, shipping will cost 3-15 working days,it depends on quantity and which battery you need.

Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacturer which produce all kind of high quality E-bike Lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
Longer battery life, the life expectancy is two times that of lead-acid batteries.
Rechargeable and no memory effect.
The weight is more lighter.
Smaller dimensions and can be customized.
Safer and more environmentally friendly, No heavy metals and hazardous substances.
BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat, short circuit .
Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
Does not use or leave the battery near a heat source as fire or heater.
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
