SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Origin: Mainland China

Type: Controller

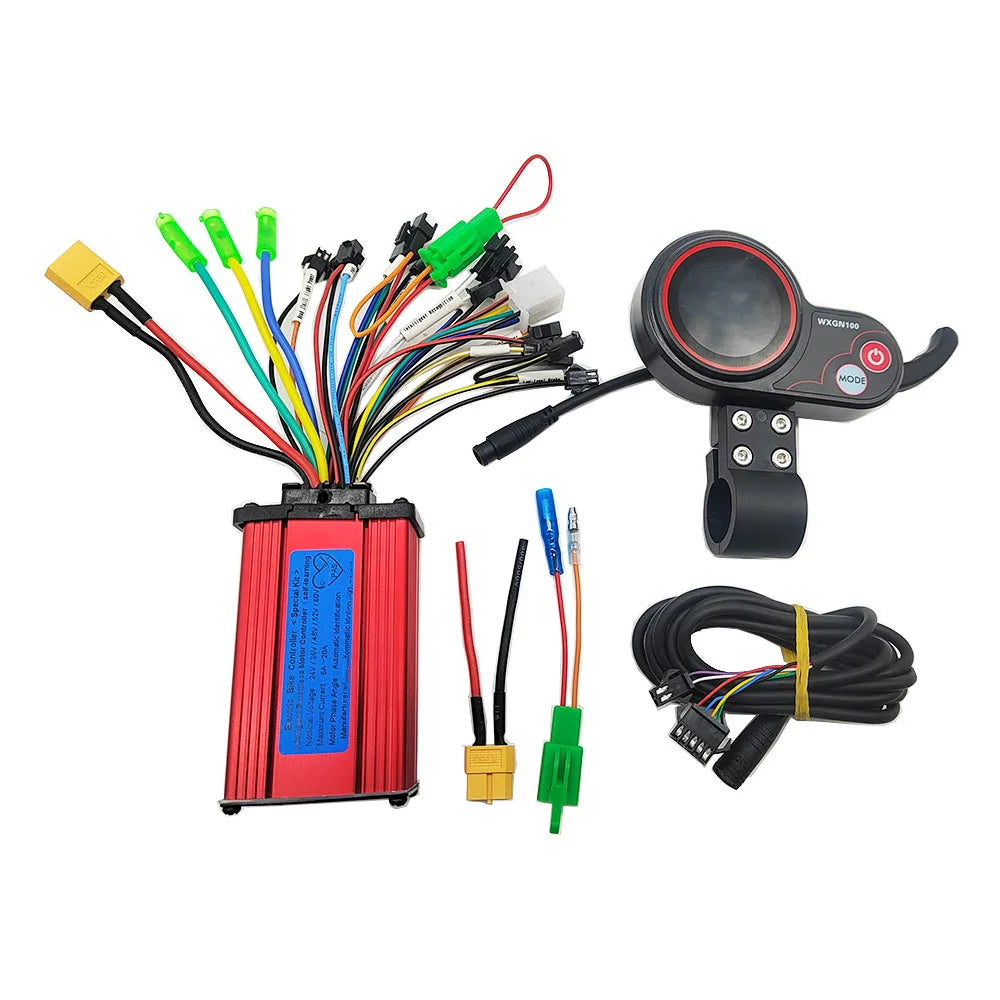

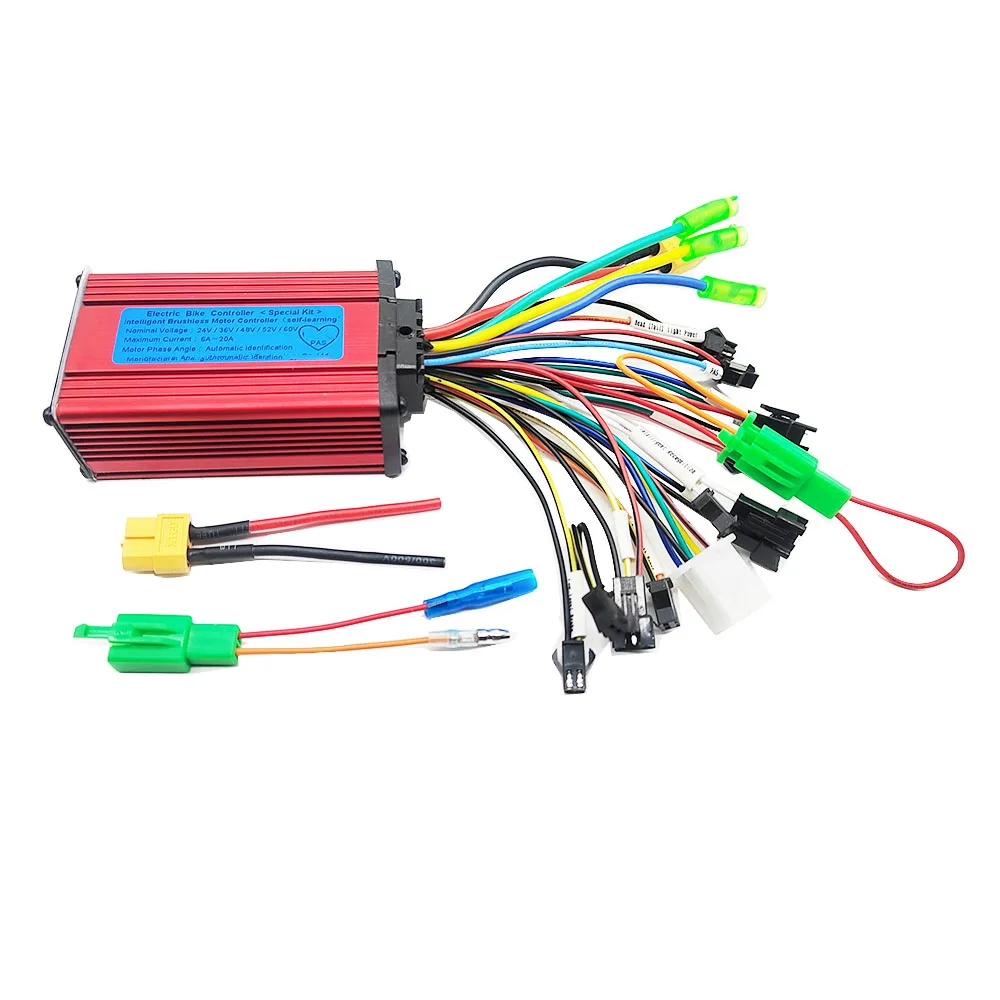

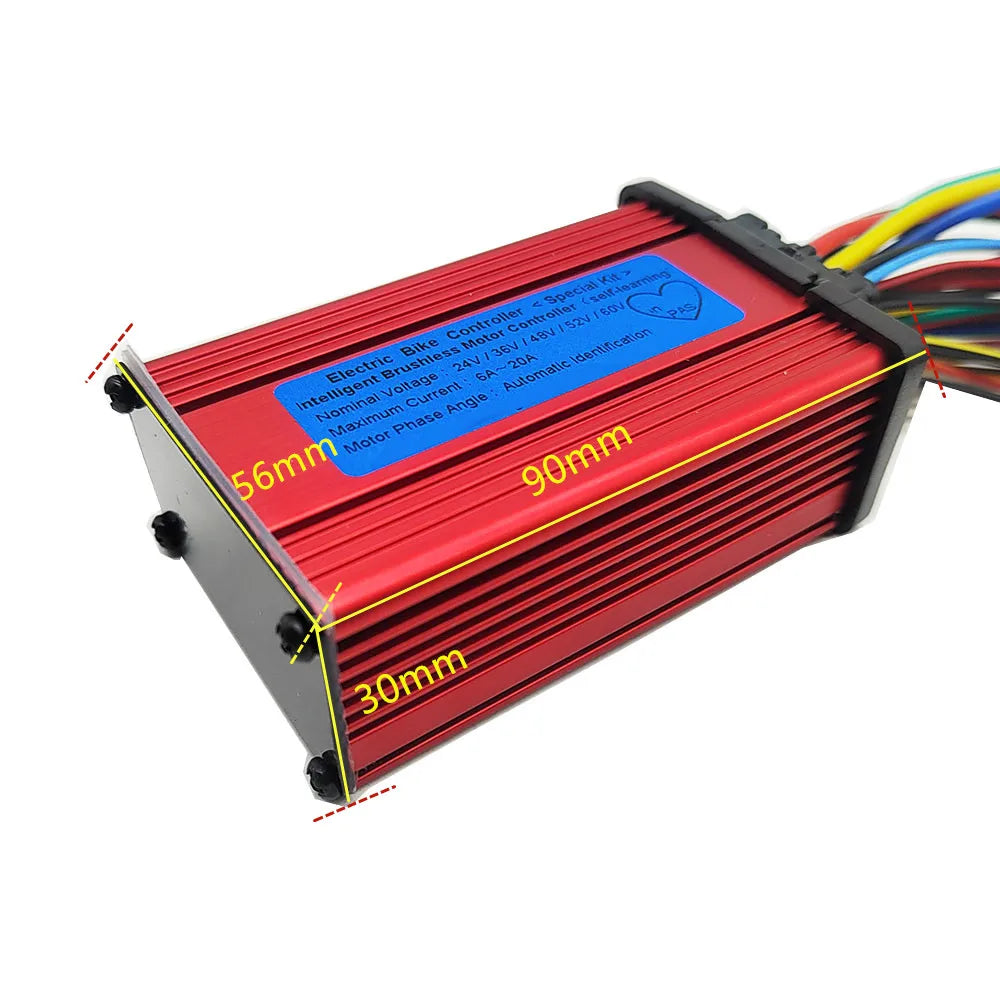

intelligent brushless square wave controller for electric bike/electric scooter/brushless motor

Attention:

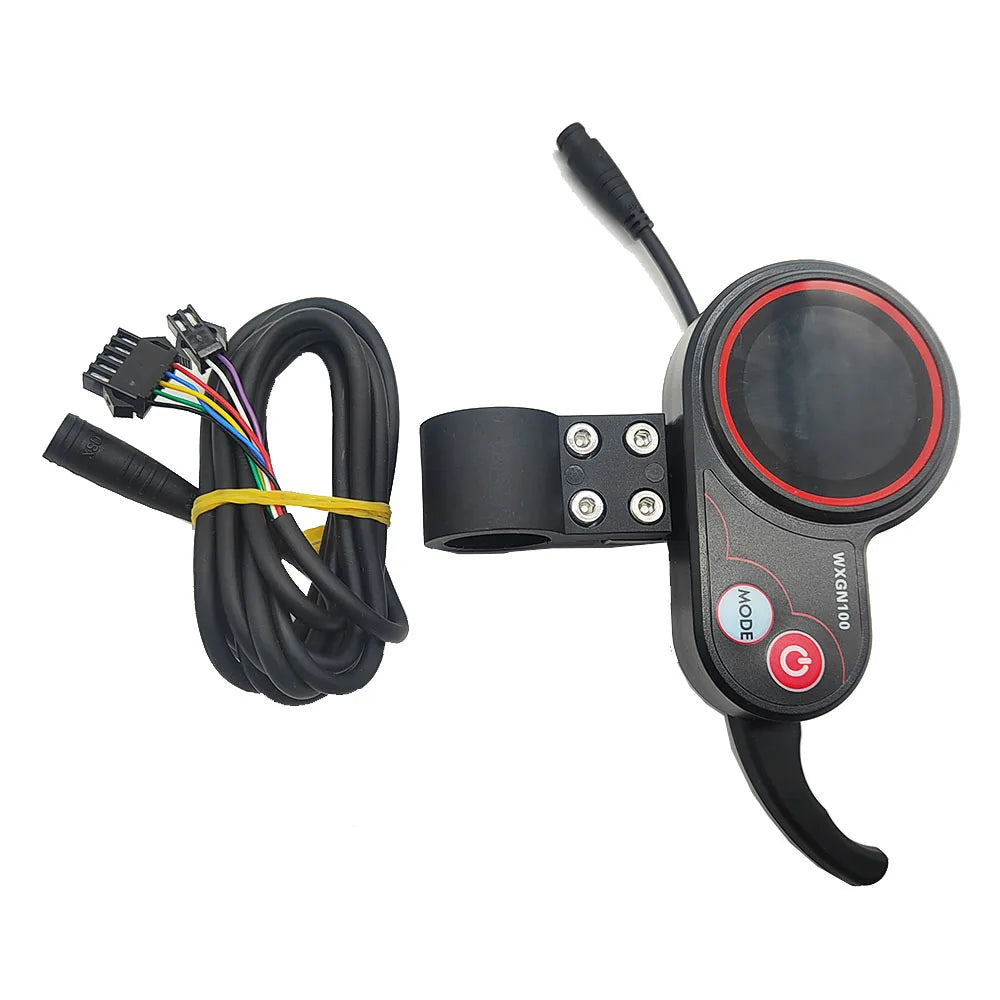

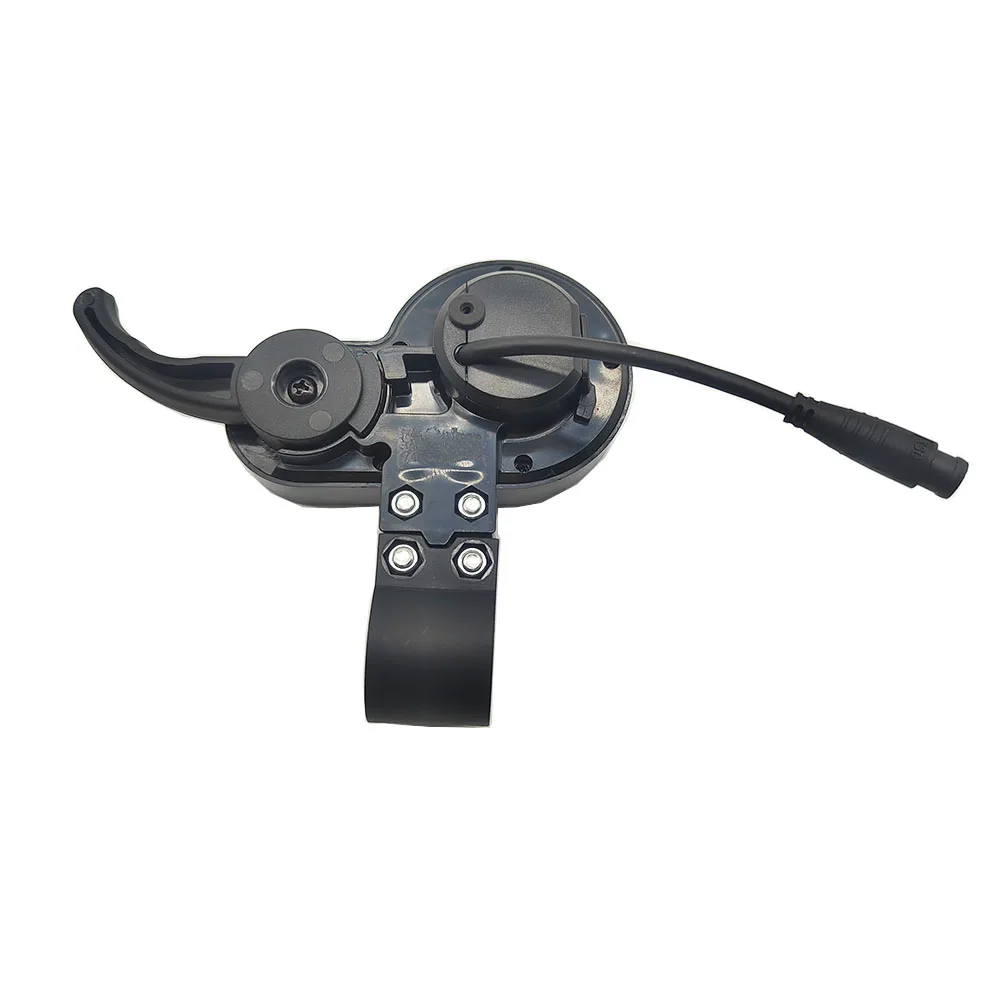

1.The controller must be connected to an instrument panel, which can be an instrument panel with throttle function, such as TF-100 and WXGN100. If your LCD instrument panel has a thumb throttle function, the controller does not require an external throttle.If the buyer use an external throttle, the instrument throttle will fail and the instrument will also report an error.

2.It can also be an instrument panel without throttle, such as the S866，SW900，If your instrument panel does not have a throttle function, you can use an external throttle.

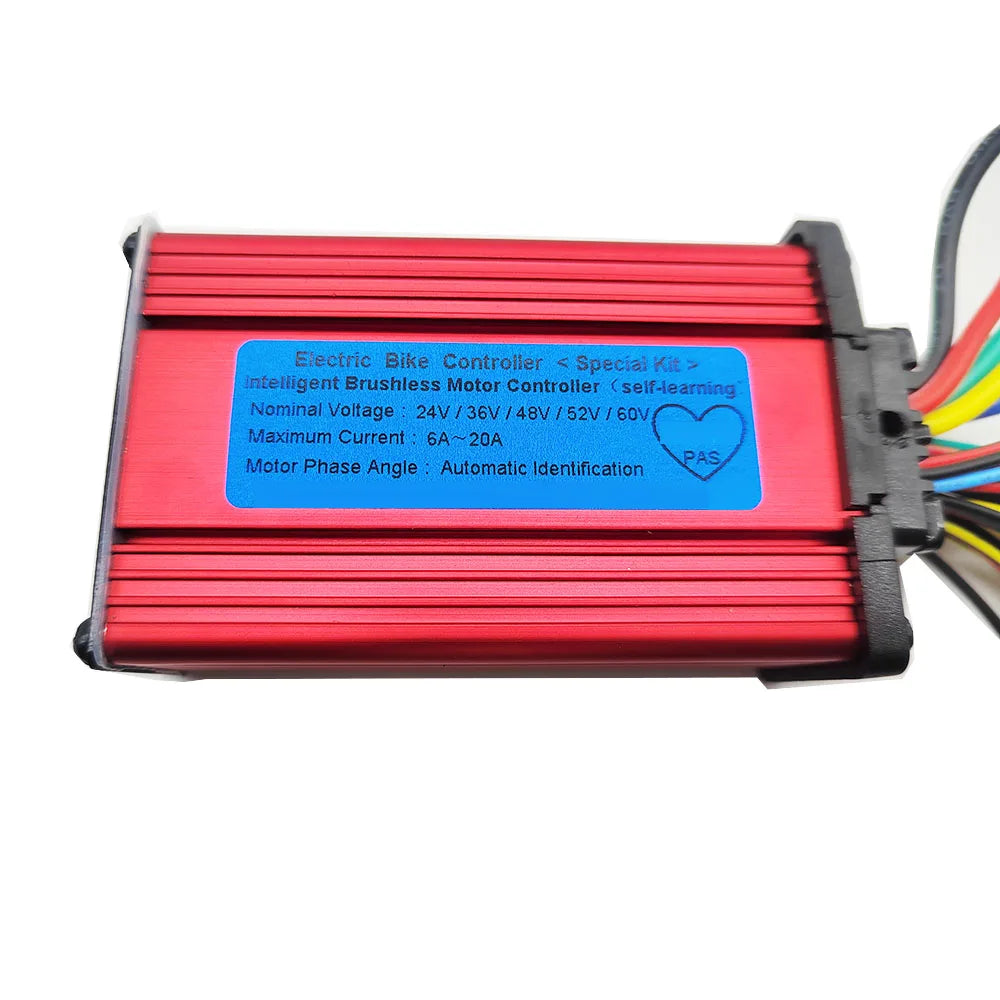

voltage：24V/36V/48V/60V universal

current：6A-20A

number of transistors: 6

rated power：250W-350W all can work

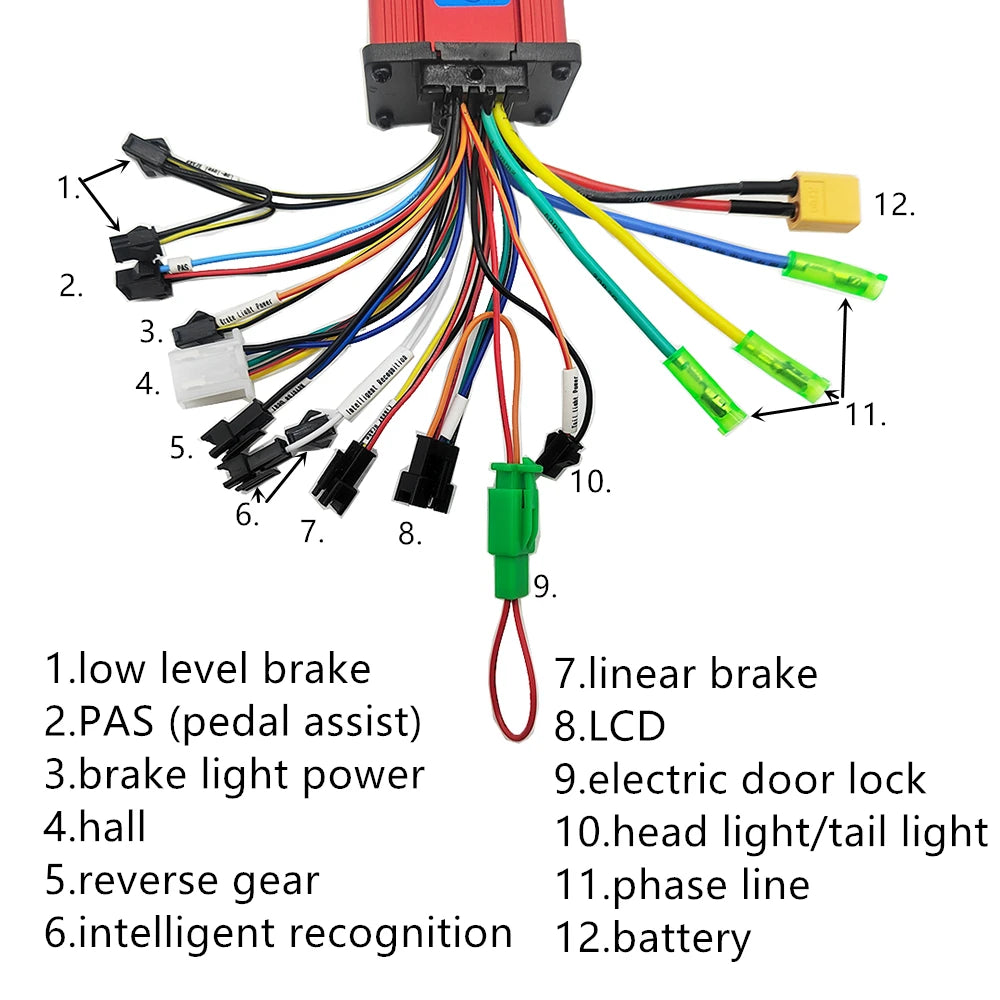

1.low level brake

2.PAS (pedal assist)

3.brake light power

4.hall

5.reverse gear

6.intelligent recognition

7.linear brake（Thumb brake）

8.LCD

9.electric door lock

10.head light/tail light

11.phase line

12.battery

how to connect ？

1.connect the phase line color to color connection

2. connect the battery line(red wire :battery + , black:battery-)

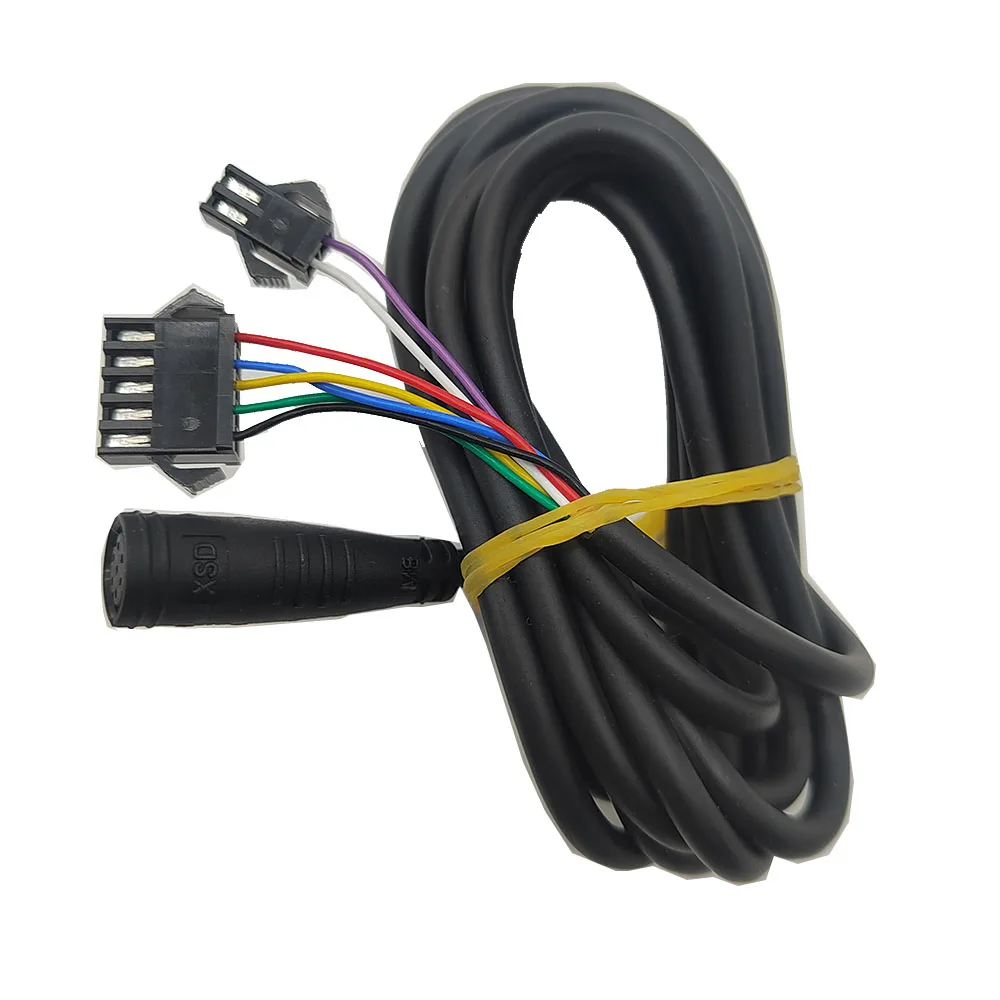

3. connect the controller LCD line

4. connect the hall line

5.docking the two intelligent recognition line also call self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.

3.This function allows the controller to intelligently identify the battery voltage and adjust the rotation direction of the motor）

6.other functions can be connected as needed.

一、Working Voltage and Connection Mode

1.Operating voltage: DC24V /36V/48V/60V compatible ,default 36V (can set to need voltage),

Note: The lead wire of some products adopts waterproof

connector.

二、Function description:

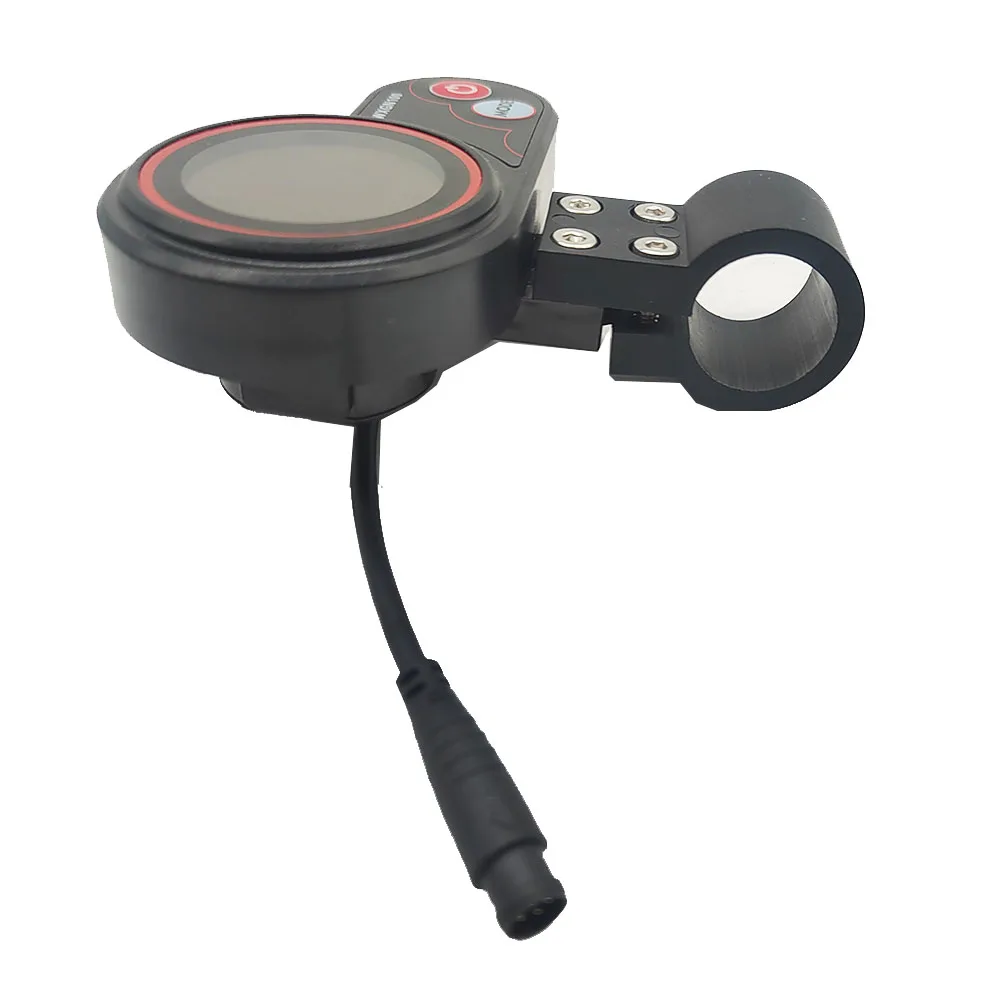

1. display function

Speed display, power indication, fault indication, total mileage, single mileage

2. control, setting function

power switch control, wheel diameter setting, idle automatic sleep time setting,

backlight brightness setting, start mode setting, drive mode setting, voltage level

setting, controller current limit setting, USB charging function,

3. communication protocol: UART（only controllers using this protocol can match this instrument，can fit TF100）

3.1 Multi-function display area

Total mileage ODO、 Single mileage TRIP、 Digital voltage display VOL、 Fault

3.2 ERR code

Fault code(decimal) Fault status

E-001 motor malfunction (if not connect hall wires, also show this problem.if your motor not have hall wires，please don't order )

E-002 throttle malfunction

E-003 controller malfunction

E-005 controller undervoltage alarm

E-006 communication failure, instrument unable to receive controller signal

a speed signal is taken from the hall signal inside the motor and sent to the

instrument through the controller .(time of a single hall period, unit :1 MS) the

instrument will calculate the true speed according to the wheel diameter and signal

data (the motor hall also needs to set the number of magnetic steel).

3.3 settings

P02： mileage unit ,00000 is km;00001 is mile;

P03： voltage rating :24 V,36V,48V,52V,60V default ;36V

P04： dormancy time :0, no dormancy; other numbers are dormancy time,range :1-60; unit minutes;

P05： booster gear :3 gear,5 gear,gear;default 5gear.

P06： wheel diameter: unit, inch;10-38,default is 10. adjustable, precision :0.1;

P07： Velocimetry: range :1-100;default 30.

P08： speed limit: range 0-100 km/h,

P09： zero start, non zero start setting ,00000: zero start ; 00001: non zero start;

P10： drive mode set

00000: power drive (through the power gear to determine how much power output, at this time turn invalid).

00001： electric drive (by turning the handle drive,at this time the booster gear is invalid).

00002 ：power drive and electric drive coexist simultaneously.

P11： Help Sensitivity Set :1-24

P12： power start strength setting :0-5;

P13：Auxiliary Magnetic Disc Type Setting :5,8,12 Magnetic Steel Four Types

P14：(0 gear, acceleration does not activate throttle), default value: 1 (excluding 0 gear)

P15：Default values: 0 (no cruising), 1: cruising (hold the accelerator for 6 seconds to enter the current speed cruising state)

P16：ODO zero setting long press key 5 seconds ODO zero

P17：(Factory reset)

P18： Default value: 1, locked and fixed, cannot be changed

三、Key and Interface Profile:

1. shutdown state, long button power boot;

short button power will switch between ODO、TRIP、VOL

2.boot state, long button power shutdown, short press MODE key, switch GEAR gear 0-5;

3. long press power + MODE key into the menu setting interface, in the P01 interface, short power key

switch menu to P02, short MODE key to change the current bit value;

3.1 To enter the menu setting interface, in any menu state, the short key power switches the menu,

the short press or the long key MODE increases or decreases the

value (the long key power changes the value addition direction,

the left side displays "A" indicates the increase value, the left side displays" d" indicates the decrease

value), after the modification, the short key power

switches to the next parameter,and saves the previous parameter value;

after the parameter modification completes again the long press power + MODE key exits the setting interface,

or waits for 8 seconds to automatically exit and save the parameter.
